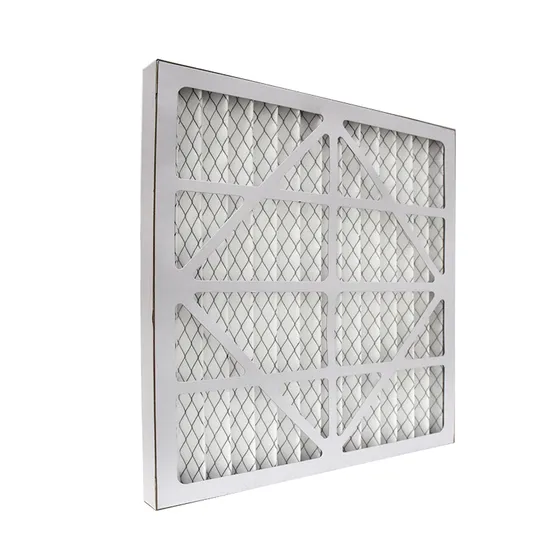

Custom 24X24′ Cardboard Frame Disposable V Shape Pleated Panel HVAC Air Filter

Product Description

Custom 24X24' Cardboard Frame Disposable V Shape Pleated Panel HVAC Air Filter
Product Description
Frame: Rigid high wet-strength beverage board, Galvanized sheet metal or Extruded anodized Aluminum profile, 46mm,25mm,20mm,15mm,10mm
Media: Non-woven reinforced cotton &synthetic media or Synthetic fiber
Faceguard: Aluminum mesh or coated mesh
Efficiency: G3 (EN779) Avg. arrestance 80%
G4(EN779) Avg.arrestance90-95%,>95@(≥5um)
Temperature: ≤70ºC Humidity : ≤100%RH
Recommended Max. Final Pressure drop: ≤250Pa
Specification

Disposable Panel Filter
Number	Model	L	W	H	Area	Airflow.pressure drop				Efficiency
		mm	mm	mm	m2	m3/h	Pa	m3/h	Pa
1	G4P59228720	287	592	20	0.2			1700	180	G4
2	G4P59259220	592	592	20	0.4			3400	180	G4
3	G4P59228725	287	592	25	0.2			1700	180	G4
4	G4P59259225	592	592	25	0.4			3400	180	G4
								Note:Pressure drop ±10%

Applications
pre filter for commercial & industrial ventilation system to protect high-performance filters, Clean room MAU and AHU system, Hotel and office building
Customized Products
Packing
Company Profile
Suzhou National Purification Technology Co., Ltd. was established in 2009. We specialized in all grades of air filters, hepa boxes, FFU etc. and has become one of the Chinese leading companies in the air filtration industry, our annual sales have exceeded 39 million dollars.
We have invested 21.5 million dollars to build a new factory in Suzhou, with a production base area of about 35,000 m2. National Group has obtained ISO9001, ISO14001, CE, UL certification and have more than 50 domestic and foreign patents, winning the title of "High-tech Enterprise". We always adhere to the tenet of "innovation and intelligent manufacturing, excellent quality, and service first" and strive to provide customers with cost-effective products.
SNAF Filter is the one that is trustworthy to work with, if you are still trying to get a partner supporting your business whole heartfully or you want cost down, pls don't hesitate to contact us.
SNAF Filter, alway waitting for you!
Certifications
Customer Visiting
FAQ
Q1: Do you provide samples?
A2: Yes, free sample can be provided but customer needs to pay for the shipping costs.
Q2: Can the product be customized?
A2: Yes, customized filters are available.
Q3: Are you a factory or trading company?
A3: We are Top 5 professional factory with rich experience in clean room engineering in China, and we have more than
50 patents for our products.
Q4: How long is the delivery time?
A4: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
