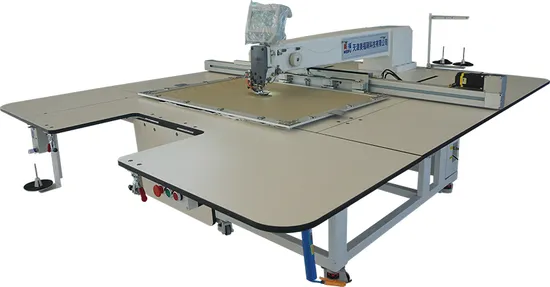

CNC Template Sewing Machine for Furniture Upholstery

US$6,000.00-8,000.00 1 Set (MOQ)

Basic Info.

Model NO.

MF-S-101-1300X900-1P220

Condition

New

Certification

CE, ISO9001

Applicable Thickness

Thick Material

Needle Number

Single Needle

Stitch Type

Lock Type

Transport Package

Wooden Carton

Specification

Working area: 1300X900mm

Trademark

MEIFU

Origin

China

Production Capacity

500 Units Per Month

Product Description

	product name	specifications and models	remarks
1	Single head CNC sewing machine	MFR-S-1.1-900*600	1 piece at a time
2	Double head CNC sewing machine	MFR-S-2.1-900*600	2 piece at a time
3	Single head CNC sewing machine	MFR-S-1.1-1200*800	1 piece at a time
4	Double head CNC sewing machine	MFR-S-2.1-1200*800	2 piece at a time
5	Four head CNC sewing machine	MFR-S-4.1-900*600	4 piece at a time
6	Six head CNC sewing machine	MFR-S-6.1-900*600	6 piece at a time

Machine configuration:
1. Maximum sewing area: 1300mmx900mm
2. Power supply: 220V/50HZ
3. Sewing speed: 400-1500 rpm
4. Stitch length: 0.5-12.7mm
5. Program input method: USB
6. Operation screen: Touch LCD screen
7. Spindle drive: Servo motor drive
8. Thread trimming method: Motor circular knife trimming
9. X/Y drive mode: Servo motor + lead screw drive
10. Rotary hook: Double capacity rotary hook imported from Japan
12. Automatic oil supply, pneumatic pressure frame,
13. Template (3 optional): aluminum template, cloth clip template, acrylic board template
Scope of application:
It is suitable for all kinds of leather and other medium-thick materials, such as car seats, cushions, safety belts, airbags and other automotive interiors, and it is also suitable for sewing tents, furniture and other supplies.
