60 Inch Made in China Dalian Rubber Open Two Roll Mill

60 Inch Made in China Dalian Rubber Open Two Roll Mill

US$52,300.00-62,600.00 1 set (MOQ)

Basic Info.

Model NO.
XK-550
Control Type
Artificial
Automatic Grade
Automatic
Power Source
Electric
Type
Open Mixing Mill
Certification
ISO, Ce, SGS, etc.
Voltage
380V, 220V, 440V, 110V, 120V, 240V, 480V
Power
110kw
Weight
22500kgs
Roller Material
Chilled Cast Iron
Lubrication System
by Grease or Oil Pump
Roller Support
Nylon Bush or Bearing Rolls
Nip Adjustment
Manual or Electrical Control
Stock Guider
Fixed, Moveable or Hydraulic
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Case
Specification
XK-550
Trademark
YUNTAI
Origin
Dalian, China
HS Code
84778000
Production Capacity
30 Sets / Month

Product Description

Open mixing mill (We make open mixing mill models from XK-160 to XK-610):
Bearing Rolls, Harden Tooth Reducer, CE Approval
Product Description:
What is the specification of the machine?
Usage: For rubber & plastic compound mixing and sheeting

Model: X(S)K-160X320 X(S)K-230X635 X(S)K-250X635 X(S)K-300X700 X(S)K-360X900
X(S)K-360X900 X(S)K-400X1000 X(S)K-450X1200 X(S)K-550X1500 X(S)K-610X1730
Model Roller size(mm) Front roll linear speed(m/min) Speed ratio Feeding
batch(kg)
Max. nip adjustment (mm) Motor
power
(kw)
Overall dimension
(L*W*H)(mm)
Weight
(kgs)
X(S)K-160 160*320 8.89 1:1.35 1-2 4 5.5 1160*920*1370 1000
X(S)K-230 230*635 12.71 1:1.19 5~10 8 15 3100*1300*1100 2000
X(S)K-250 250*635 14.01 1:1.17 10-15 8 15 3200*1350*1100 2000
X(S)K-300 300*700 15.34 1:1.17 12-20 10 22 3600*1400*1300 4000
X(S)K-360 360*900 16.45 1:1.25 15-25 10 30 4100*1650*1450 6000
X(S)K-400 400*1000 18.83 1:1.27 25-35 10 40 4600*1850*1450 8500
X(S)K-450 450*1200 24.12 1:1.27 30-50 10 55 5100*2100*1500 12500
X(S)K-550 550*1500 31.33 1:1.20 50-60 15 110 6500*2200*1750 22000
X(S)K-610 610*1730 30.1 1:1.18 120-140 15 160 6600*2400*1850 32000

What are the options and configurations?
1. Driving system: Bull gear drive, single shaft output or double shaft output for your choice.
2. Roller gap adjustment: by manual or electrical (motor drive) for your choice.
3. Roller support: by nylon bush or bearing rolls for your choice.
4. Lubrication system: by grease or oil pump for your choice.
5. Stock guider: movable, fixed or hydraulic for your choice.
6. Gear reducer: ZSY harden tooth reducer.
7. Electrical components brand: CHNT, Siemens, etc. for your choice.
8. Stock blender optional.
What are your machine characters?
1. Roller material: chilled cast alloy iron LTG-H with hardness 68~72HSD.
2. Abrasion proof and corrosion resistant.
3. High precision gears with lower noise.
4. Speed ratio gears with necessary heating treatment.
5. High efficiency, energy saving and new design saves occupied space.
6. Interlock protection with reverse running function ensure low personal injury.
7. Our machines have CE certificate.
Company Information:
What is your company history?
Dalian Yuntai Industrial Equipments Co.,Ltd is a professional enterprise established in 1996, locates in Dalian industrial park, the most beautiful costal city in Liaoning Province. By our innovative and realistic culture, perfect internal management, good quality products service and steady market position, we have got a good reputation from our customers.
Our products involves in rubber mixing, sheeting and performing machinery, such as rubber kneader, Banbury mixer, bucket elevator, two roll mixing mill, rubber refiner, rubber cracker, batch off cooling machine, EVA foam sheet splitting machine, rubber bale cutter, strip cutter, rubber calender, rubber extruder, rubber strainer, etc.
Yuntai insists on the management strategy of "To promote the construction of modern marketing network". By our reliable quality, reasonable prices, prompt delivery and good after-sale service, we have won the trust of customers from all over the world. Our products have been distributed to Europe, South America, North America, Southeast Asia, Middle East area, Oceania, etc. We aim to create top famous brand in the world.
"Good Quality, Reasonable Price, Best Service" is our goal. We warmly and sincerely welcome customers all over the world to visit our factory and look forward to establishing long term cooperation and solid relationship to make mutual benefit.
Pictures of workshops:

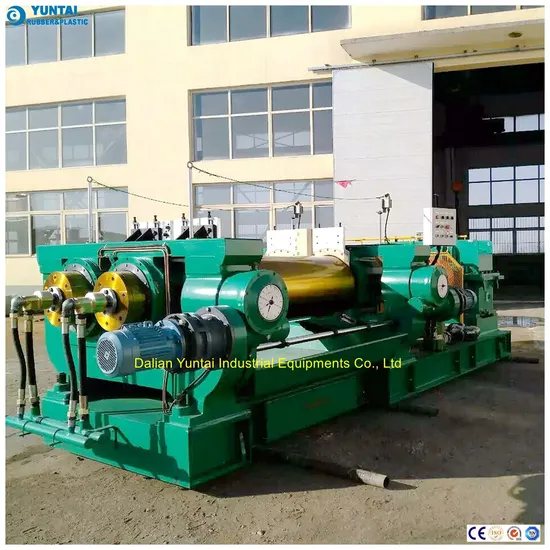

Pictures of the machine:
Could you show me more pictures of the machine?
Certificates:
What certificates do you have?
Service:
What is your aftersale service?
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
Payment:
What is your terms of payment?
Wire transfer: 30% advance by T/T, 70T balance by T/T before shipment.
Letter of credit: by irrevocable letter of credit at sight.
Western union: it is a fast and safe way.
Trade terms:
What is trade terms acceptable?
We can do FOB, C&F and CIF for your choice.
Contact:
How to contact you?
You can send us inquiry and leave your phone number, then we will contact you soon.
