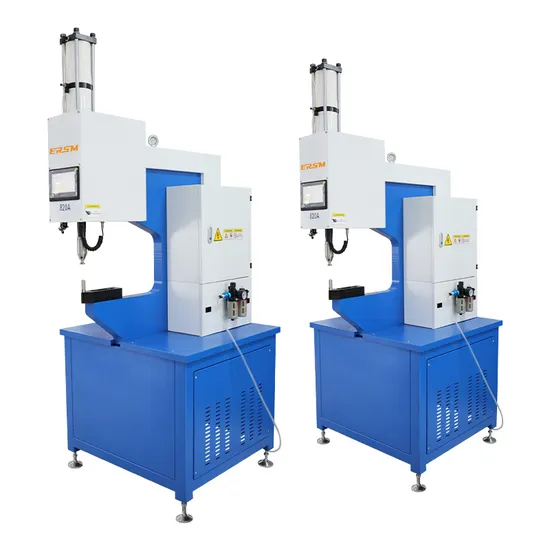

Advanced 100% Safety System 340mm Throat Height Pneumatic 8ton Fastener Insertion Machine

Product Description

Product Features
Economical and reliable cast steel frame, super large working throat depth
Can be flexibly adapted to different processing requirements
Driven by compressed air at 2bar-6bar, it can generate 80KN of ram force without hydraulic system
The stamping force is steplessly adjustable within the specified range
It is easier to operate the equipment using PLC control
Able to work effectively with manipulators
Product Parameters

Model	820A
Machine Air Intake	3bar-6bar
Input Power	220V 1P 50HZ 50W
Upper Die Reciprocating Stroke	100mm
Cylinder Stroke	100mm
Ram Force	0-8 Tons Infinitely Adjustable
Throat Height	340mm
Throat Depth	500mm
Force Stroke	8mm
Rack Thickness	135mm
Machine Size	1100*840*2000mm
Weight	450KG
