Advanced Automated Packing Machine for Honeycomb Core Solutions
| US$540,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HX3000-1100G
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Recycled Material, Paper
Paper Thickness
Normal Specification Paper
Material
Starch/PVA
Heating
Steam
Opearting Person
3
Production Time
5month
Transport Package
5 40hq
Specification
35300mm *6000mm *3800mm
Trademark
meixun
Origin
China
Production Capacity
10 Sets/Year
Product Description
Product DescriptionModel: HXMachine Speed: 30Power Supply: 00-Voltage: 11Frequency: 00G Performance: High Operation: Speed Equipment: Honeycomb Paper Core Machine
Main Technical Parameters of the Equipment: Delve into the sophisticated specifications that make our equipment a leader in its class - from precision engineering to robust construction, every parameter speaks volumes of our commitment to quality.
| ,HX3000-1100G High Speed Honeycomb Paper Core machine Main technical parameters of the equipment | ||
| parameters | Specifications | |
| 1 | Effective width of core paper | 1700mm-3000mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |
| 5 | Finished paper core thickness | 4-15mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | 4.5mm |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately55KW |
| 11 | normal production power consumption | 55KW*50%-60% |
| 12 | Total weight of equipment | Approximately 90T |
| 13 | Equipment dimensions | 35310mm length×6000mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
| parameters | Specifications | |
| 1 | Effective width of core paper | 1700mm-3000mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |
| 5 | Finished paper core thickness | 4-15mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | 4.5mm |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately55KW |
| 11 | normal production power consumption | 55KW*50%-60% |
| 12 | Total weight of equipment | Approximately 90T |
| 13 | Equipment dimensions | 35300mm length×6000mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
Certifications

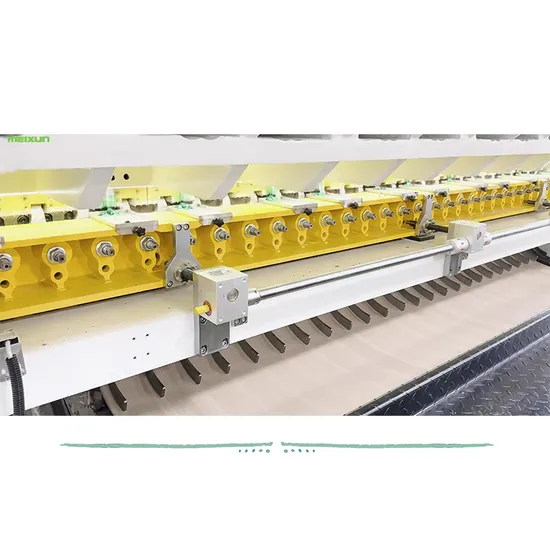

Detailed Photos
