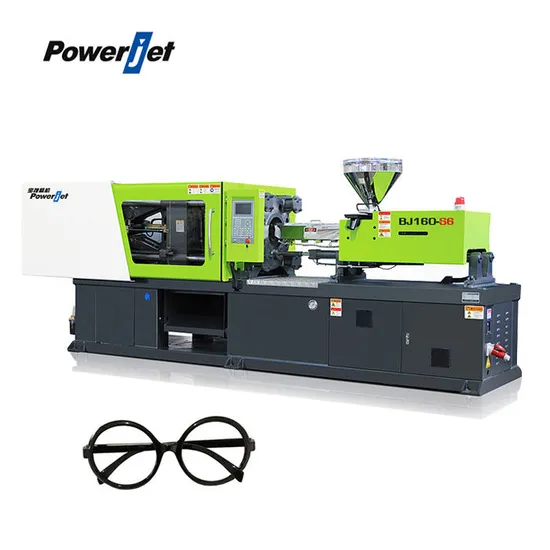

Powerjet Servo Motor Moulding Plastic Glasses Frame Injection Molding Making Machine for Eyeglasses

Product Description

Powerjet servo motor moulding plastic glasses frame injection molding making machine for eyeglasses

STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.

Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts

FEATURES:
Variable Pump System:
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%.

Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.

Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.

Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.

Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.

	DESCRIPTION	UNIT	BJ160-S6
CLAMPING UNIT	Clamping force	KN	1600
	Opening stroke	mm	440
	Max.datlight	mm	940
	Platen size	mm	705*705
	Space between bars	mm	460*460
	Max.mold height	mm	500
	Min.mold height	mm	160
	Ejector stroke	mm	140
	Ejector force	KN	49
INJECTION UNIT	Screw diameter	mm	46
	Screw L/D Ratio	L/D	20
	Injection Pressure	MPa	177
	Shot volume	cm3	340
	Screw stroke	mm	302
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	15/16
	Heater power	kW	9.8

Please feel free to consult us whenever you want to know more information. Thanks~

About our company:
Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 20 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance, High Speed, Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with advanced experience and lean production.
And we also focus on the development of special injection molding machines according to the customer's need, like machines for PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products, and also provide the turnkey projects for the customers.

Our Services & Strength Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With a global sales network, our local offices and agents can provide more convenient and sincere services. 1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
