Two-Axle Air Suspension Car Carrier Trailer, Car Transport Semi-Trailer Can Transport 6-10 Cars, Two-Layer Hydraulic Lift Car Trailer, Custom Car Trailer

Product Description

Product Description
Advanced Hydraulic Lifting System
Our trailer is equipped with a state-of-the-art hydraulic lifting system, designed to significantly reduce the time and labor involved in loading and unloading vehicles. This efficient system enhances overall productivity, making operations smoother and more effective.
Durable Rear-End Ladders for Easy Access
At the rear end of the trailer, a pair of ladders are provided to facilitate the loading and unloading of commercial vehicles. These ladders are constructed from high-strength square tubing, ensuring they are both lightweight and exceptionally durable, allowing for ease of use and long-lasting performance.
Adjustable Dual-Layer Design for Optimal Space Utilization
The trailer features an innovative dual-layer design, allowing vehicles to be loaded on two levels. The height of each layer is fully adjustable, providing greater flexibility and optimizing the space for loading commercial vehicles. This ensures a more efficient and organized arrangement, catering to various vehicle sizes and types.
Extendable Rear Tail for Enhanced Capacity
The rear tail section of the trailer is designed with versatility in mind. In situations where additional loading space is required, the rear tail can be extended by approximately one meter, accommodating larger vehicles or additional cargo. This extendable feature ensures that the trailer can adapt to varying load requirements, making it a versatile choice for different transport needs.

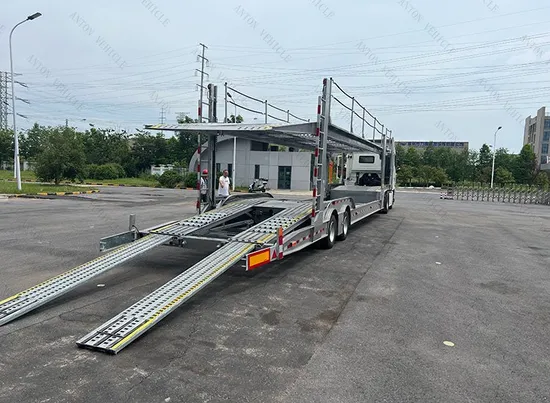

Detailed Photos

Product Information
Color		Aluminum alloy, stainless steel, manganese steel (baking paint) manganese steel (galvanized)
Outside Dimensions (L*W*H)		14000mm-32000mm*2500mm-2600*3500mm
Rated Load		25T
Tare Weight		11.5T
Wheel Base		variables+1310+1310 (mm)
Tires		specification		255-75R19.5/275-65R17.5/295-65R17.5
		No. of tires		6/8/12
		Spare tire carriers		1 or 2
Axles		Brand		FUWA (BPW optional)
		No. of axles:		2/3
		Axle-load		FUWA13T BPW12T/10T
Wheel rim		7.50-20 rim or 8.00
Suspension		rigid suspension,10 pcs leaf-spring
Brakes		brand		WABCO brand
		Brake chamber		T30/30 double air chamber
		System		Dual line braking system /ABS
Main Beam		material	I beam ,Q345B, automatic submerged arc welded
		specification	Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam material		Q235B Q345B Q345E MCK2 T700
Side beam		Integrated bending beam
Plate form		Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin		JOST 50# or 90#
Landing gear		JOST brand or homemade outriggers,
Accessory		One tooling box with a set of standard trailer tool 4 side lights, 1 tail light, and several wearing parts
Voltage		24V
Receptacle		7 ways (7 wire harness)
Lights		Front corner marker lamp :red ;reflector lamp :white
		Side marker :orange
		Rear lamp :red; rear reflector :white; turn single lamp :orange

Company Profile
Product Display
Packaging & Shipping

FAQ
Q: How about payment?A:30% T/T deposit, 70% T/T balanced before shipment.Q: How about your delivery time?A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q: Is OEM available?A: Yes, we offer customized services according to your requests.Q: Do you test all your goods before delivery?A: Yes, we have a 100% test before delivery.Q: Can I print my logo on a trailer?A: Of course, you can send me your company logo, then we will design it.
