Machinery Construction Hydraulic Grabber for 9ton 10t 12t 15t 16t Excavator
Basic Info.
Model NO.
HM06(9t-16t)
Type
Excavator Grapple
Usage
GM Excavator
Certification
CE, ISO9001: 2000
Condition
New
Weight
920kg
Suitable Excavator Size
9-16ton
Jaw Opening Size
1623mm
Material
Q355mn Steel
Motor Brand
Eaton
Tines Number
3+2,4+3.5+4 Are Available
Control Way
Hydraulic or Electronic Control
Machinery Test Report
Provide
Oil Pressure
160-180kg/Cm2
MOQ
1PC
Certificate
CE,ISO9001
Rotation
Unlimited
Suitable Machine
Excavator,Backhoe
Color
as Customer Request
Logo
as Customer Request
Transport Package
Polywood Case
Specification
HM06
Trademark
As customer request
Origin
Yantai City, China
HS Code
8431499900
Production Capacity
5000PCS/Year
Product Description

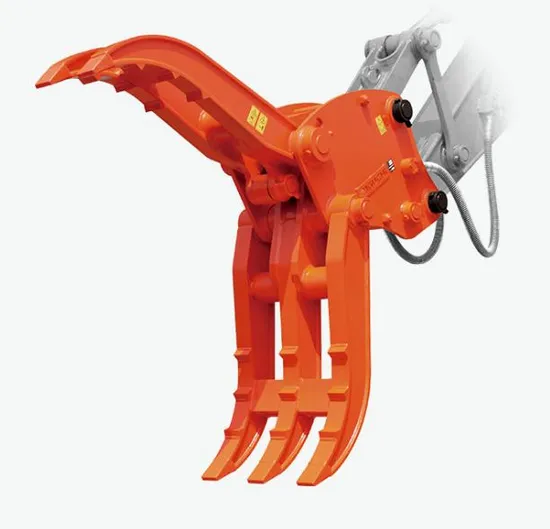

Hydraulic Japan Grapple for Stone/Steel/ScrapHOMIE hydraulic rock grapples are designed for loading and unloading stone,rock,steel and scrap materials,mounted on excavators with hydraulic systems. They are available with open or closed shells/tines depending on the job and the type of material to be handled. Manufactured of high quality Q355Mn steel, all bearings are heavy-duty and sealed for high performance.
Features:
* EATON quality motor
* Winner brand safety valve
*Structure: 3+2 ,4+3 and 5+4
*Easy operation by handle
*12 months warranty
Please contact our customer service staff to recommend the suitable grab model.
| Category | Unit | HM04 | HM06 | HM08 | HM10 |
| Weight | kg | 565 | 920 | 1940 | 1980 |
| Max Jaw Opening | mm | 1336 | 1623 | 2115 | 2115 |
| Oil Pressure | Kg/cm2 | 120-160 | 150-170 | 160-180 | 160-180 |
| Setup Pressure | Kg/cm2 | 180 | 190 | 200 | 210 |
| Operating Flux | L/Min | 50-100 | 90-110 | 100-140 | 130-170 |
| Suitable Excavator | Ton | 5-8 | 9-16 | 17-25 | 26-35 |
