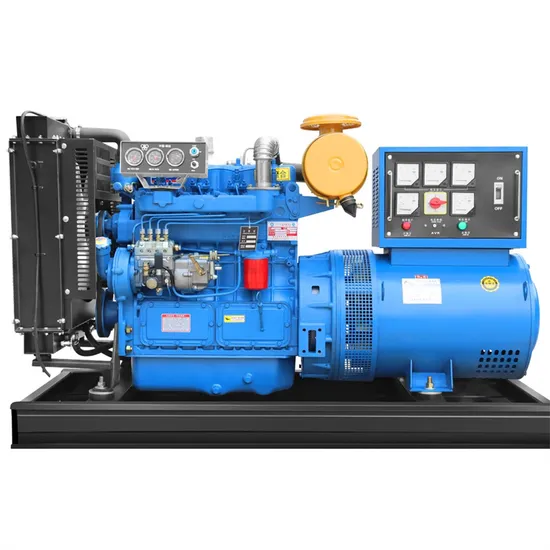

Small Marine Silent Power Weifang Weichai Ricardo 20kw 25kw 30kw 50kw 60kw 100kw 200kw 250kw 25kVA 30kVA 50kVA 60kVA 70kVA 100kVA 150kVA 200kVA Diesel Generator
| US$900.00-1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY-20
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Low Speed
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Generator Color
According to Customer Requirement
Engine Radiator
Larger Heat Dissipation Area
Engine Cylinder Block
Without Any Leak
Engine Crank Shaft
Increases Intensity
Engine Fuel Injection Pump
Without Any Block in Injector
After-Sale Service
Very Quick Service
Noise
Lower Noise
Spare Parts
Reliable and New Design Parts
Price
Flexible Price According to Order Quantity.
Transport Package
Plywood Box
Specification
compact appearance
Trademark
huayu
Origin
China
HS Code
8502110000
Production Capacity
5000pieces/Year
Product Description
Small Marine Silent Power Weifang Weichai Ricardo20kw 25kw 30kw 50kw 60kw 100kw 200kw 250kw 25kVA 30kVA 50kVA 60kVA
70kVA 100kVA 150kVA 200KVA Diesel Generator
| MAIN SPECIFICATIONS | |||||
| GENERATOR SET MODEL | HY-30 | HY-40 | HY-50 | HY-75 | |
| Generator Output (kw) | 30 | 40 | 50 | 75 | |
| Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Frequency(Hz) | 50 | 50 | 50 | 50 | |
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | |
| Phase | 3 | 3 | 3 | 3 | |
| DIESEL ENGINE MODEL | K4102D | K4102ZD | R4105ZD | R6105ZLD | |
| Engine Characters | water-cooled,inline,4 strokes,direct injection ,wet cylinder liner | ||||
| Constant output (kW / kVA) | 33 / 41.25 | 44 / 55 | 56 / 70 | 100 / 125 | |
| Standby Output (kW / kVA) | 36.3 / 45.375 | 48.4 / 60.5 | 61.6 / 77 | 110 / 137.5 | |
| Aspiration | Turbocharged | Turbocharged | Turbocharged | Turbocharged | |
| Bore(mm) X Stroke(mm) | 102X125 | 102X125 | 105X125 | 105X125 | |
| Displacement (Liters) | 3.5 | 3.5 | 4.33 | 6.49 | |
| Compression Ratio | 17:01 | 17:1 | 16:1 | 16:1 | |
| Machine Governor | ≤5% | ≤5% | ≤5% | ≤5% | |
| Exhaust Temperature(ºC) | ≤540 | ≤540 | ≤600 | ≤600 | |
| Lube Capacity (L) | 13 | 13 | 12 | 16 | |
| Cooling System Voluem(L) | 11 | 11 | 16 | 26 | |
| Combustion Air Flow | 2.7m3/min | 2.7m3/min | 5.11m3/min | 6.35m3/min | |
| Exhaust Gas Flow | 7.95m3/min | 7.95m3/min | 13.83m3/min | 17.1m3/min | |
| Rating Fuel Consumption (g/kw.h) | 224 | 224 | 231 | 224 | |
| ALTERNATOR | |||||
| Rated power (kw) | 30 | 40 | 50 | 75 | |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Rated frequency(Hz) | 50 | 50 | 50 | 50 | |
| Excitation Type | Brushless | Brushless | Brushless | Brushless | |
| Insulation Class | H | H | H | H | |
| Power Factor | 0.8(lag) | 0.8(lag) | 0.8(lag) | 0.8(lag) | |
| connection Type | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | |
| Rated Speed(rpm) | 1500 | 1500 | 1500 | 1500 | |
| Protection | IP22 | IP22 | IP22 | IP22 | |
| Approximate Length | 2200mm | 2200mm | 2200mm | 2800mm | |
| Approximate Width | 900mm | 900mm | 1000mm | 1100mm | |
| Approximate Height | 1250mm | 1250mm | 1300mm | 1750mm | |
| GENERATOR SPECIFICATIONS | |||||
| GENERATOR SET MODEL | HY-100 | HY-120 | HY-200 | HY-250 | |
| Generator Output (kw) | 100 | 120 | 200 | 250 | |
| Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Frequency(Hz) | 50 | 50 | 50 | 50 | |
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | |
| Phase | 3 | 3 | 3 | 3 | |
| DIESEL ENGINE MODEL | R6105AZLD | R6108IZLD | R6126ZLD | R618ZLD | |
| Engine Characters | water-cooled,inline,4 strokes,direct injection | ||||
| Constant output (kW / kVA) | 110/137.5 | 150/187.5 | 235/293.75 | 280/350 | |
| Standby Output (kW / kVA) | 121/151.25 | 165/206.25 | 258.5/323.125 | 308/385 | |
| Aspiration | Turbocharged | Turbocharged | Turbocharged | Turbocharged | |
| Bore(mm) X Stroke(mm) | 105X130 | 108X135 | 126X135 | 126X155 | |
| Displacement (Liters) | 6.75 | 6.85 | 9.8 | 11.6 | |
| Compression Ratio | 16:1 | 16:1 | 16:1 | 16:1 | |
| Machine Governor | ≤5% | ≤5% | ≤5% | ≤5% | |
| Exhaust Temperature(ºC) | ≤600 | ≤600 | ≤600 | ≤600 | |
| Lube Capacity (L) | 16 | 16 | 16 | 16 | |
| Cooling System Voluem(L) | 25 | 25 | 25 | 25 | |
| Combustion Air Flow | 8.8m3/min | 9.8m3/min | 22m3/min | 22m3/min | |
| Exhaust Gas Flow | 25.4m3/min | 28.3m3/min | 63.58m3/min | 63.58m3/min | |
| Rating Fuel Consumption (g/kw.h) | 225 | 225 | 218 | 218 | |
| ALTERNATOR MODEL | |||||
| Rated power (kw) | 100 | 120 | 200 | 250 | |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Rated frequency(Hz) | 50 | 50 | 50 | 50 | |
| Excitation Type | Brushless | Brushless | Brushless | Brushless | |
| Insulation Class | H | H | H | H | |
| Power Factor | 0.8(lag) | 0.8(lag) | 0.8(lag) | 0.8(lag) | |
| connection Type | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | |
| Rated Speed(rpm) | 1500 | 1500 | 1500 | 1500 | |
| Protection | IP22 | IP22 | IP22 | IP22 | |
| Approximate Length | 2800mm | 2800mm | 3600mm | 3600mm | |
| Approximate Width | 1100mm | 1100mm | 1300mm | 1300mm | |
| Approximate Height | 1750mm | 1750mm | 2000mm | 2000mm | |
