T91 P91 P22 A355 P9 P11 4130 42CrMo 15CrMo Alloy Carbon Steel Pipe St37 C45 Sch40 A106 Gr. B A53 Seamless Steel Pipe

Product Description

Product Description
The complex chemical and physical properties of the various grades of carbon steel pipe allow for a broad range of service usage. American Piping Products has the right grade, size and price to meet your requirements, including A/SA-106 GRADE B/C and API 5L X-42 thru X-70. A/SA-106 Grades B & C are utilized for services ranging from structural supports to steam drum headers with temperature ranges up to 800°F, while API 5L X Grades 42 thru 70 are utilized for the water and petroleum industry to transport liquids or as platforms on off-shore rigs.
Benefits of Carbon Steel Piping
Carbon steel piping is a durable material made from carbon steel, a steel alloy with iron and carbon. Because of its strength and ability to withstand stress, carbon steel pipe is used in a variety of heavy-duty industries like infrastructure, ships, distillers, and chemical fertilizer equipment.
Carbon Steel Pipes
The incredible strength of carbon steel means that carbon steel pipe can be made thinner and with less material while still being able to transport high volumes. This makes carbon steel piping a cost-effective material. Not only can less of it be used, but carbon steel is also recyclable, making it both environmentally-friendly and cost-effective.
Because it's easy to manufacture, carbon steel piping is a versatile material. We can make it in a variety of thicknesses and dimensions. It's also easy to cut and bent to fit wherever it's needed. Its also easily connected to joints, valves, and other pipe fittings.

Product Name	Carbon Steel Pipe
Material	A53 Gr.B,A36,ST52,ST35,ST42,ST45,X42,X46,X52,X60,X65X70
Standard	API 5L,ASTM A106 Gr.B,ASTM A53 Gr.B,ASTM A179/A192,ASTM A513,ASTM A671,ASTM A672,BS EN 10217,BS EN10296,BS EN 39,BS6323,DIN EN10217
Certificates	API 5L,ISO9001,SGS,BV,CCIC
Outer Diameter	15mm-1200mm
Wall Thickness	SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS
Length	1m,4m,6m,8m,12m according to buyer's request
Surface Treatment	black paint,varnish,oil,galvanized,anti-corrosion coated
Marking	Standard marking,or according to your request.Marking Method:Spray white paint
End Treatment	Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps
Technique	Hot Rolled or Cold Rolled ERW
Application	Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe

Classfication of carbon seamless steel pipe

Types	Application
Structure Purposes	General structure and mechanical
Liquid Services	Petroleum, gas and other fluids conveying
Low and Medium Pressure Boiler Tube	Steam and boiler manufacturing
Hydraulic Pillar Service	Hydraulic support
Auto Semi-shaft Casing	Auto sem-shaft casing
Line Pipe	Oil and gas conveying
Tubing and Casing	Oil and gas conveying
Drill Pipes	Well drilling
Geological Drilling Pipe	Geological drilling
Furnace tubes, heat exchangers tubes	Furnace tubes, heat exchangers

Standard Carbon Steel Pipe Specifications & Grades
A/SA-106
ASTM A106 seamless steel pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.
Scope
ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.
NPS 1-1/2″ and under may be either hot finished or cold drawn. NPS 2″ and larger shall be hot finished unless otherwise specified.
Process
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.
1/2" Nominal to 24"O.D. Seamless Pipe
Wall Thicknesses - Schedule 40 up to 4.000"Seamless Steel Pipe Standard

ASTM A53 Gr.B	Black and hot-dipped zinc-coated steel pipes welded and seamless
ASTM A106 Gr.B	Seamless carbon steel for high temperature service
ASTM SA179	Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes
ASTM SA192	Seamless carbon steel boiler tubes for high pressure
ASTM SA210	Seamless Medium-carbon boiler and superheater tubes
ASTM A213	Seamless alloy-steel boiler, superheater, and heat-exchanger tubes
ASTM A333 Gr.6	seamless and welded carbon and alloy steel pipe intended for use at low temperatures
ASTM A333 P9,P11,T22,T91	Seamless ferritic alloy-steel pipe for high-temperature service
ASTM A336	Alloy steel forgings for pressure and high-temperature parts
ASTM SA519 4140/4130	Seamless carbon for mechanical tubing
API Spec 5CT J55/K55/N80/L80/P110/K55	Seamless steel pipe for casing
API Spec 5CT PSL1/PSL2/Gr.b, X42/46/52/56/65/70	Seamless steel pipe for line pipe
DIN 17175	Seamless steel tube for elevated temperture
DN2391	Cold drawn seamless prevision pipe
DIN 1629	Seamless circular unalloyed steel tubes subject to special requirements

A/SA-53 Seamless steel pipe
ASTM A53 pipe (also referred to as ASME SA53 pipe) is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas and air lines. It is suitable for welding and for forming operations involving coiling, bending, and flanging, subject to certain qualifications.
American Piping Products stocks a full range of A53 pipe (SA53 Pipe) in:
Grade B
NPS 1/8" to 26" diameter
Schedules 10 through 160, STD, XH and XXH
Scope
ASTM A53 pipe covers Seamless and Welded, Black and Hot-Dipped Galvanized nominal (average) wall pipe for coiling, bending, flanging and other special purposes and is suitable for welding. Continuous-Welded pipe is not intended for flanging. Purpose for which pipe is intended should be stated on order.
Materials and Manufacture
The steel for both seamless and welded pipe shall be made by one or more of the following processes: open-hearth, electric furnace, or basic-oxygen. The weld seam of electric-resistance welded pipe in Grade B shall be heat treated after welding.Chemical components & mechanical properties

Standard	Grade	Chemical Components (%)					Mechanical Properties
ASTM A53		C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM SA179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM SA192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Production Process
Manufacturing Process:
Billets and coils are delivered to the pipe mill ready to be made into carbon steel pipe. Depending on the capabilities of the pipe mill and the end use of the final product, the casts will be formed into pipe by means of four distinct different manufacturing.Seamless carbon steel pipe has, as its name implies, no longitudinal weld seam. It is, in essence, one solid homogeneous piece of steel. A solid billet is simply heated and then stretched over a series of mandrels until the pipe has achieved its desired diameter and wall thickness.
Application
Carbon structural steel pipe is versatile and useful for a variety of applications. Some of the most common uses of carbon steel piping are:
Building foundations
Transporting natural gases or oil
Boiler and condenser tubes
Transporting wastewater
Chemical Processing
High-pressure applications
Transporting sewage
Bollard construction
Shipbuilding
Shoring
Trash enclosures
Distillers
OEM applications

Type			Application
Structure Purposes			General structure and mechanical
Liquid Services			Petroleum, gas and other fluids conveying
Low and Midium Pressure Boiler Tube			Steam and boiler manufacturing
Hydraulic Pillar Service			Hydraulic support
Auto Semi-shaft Casing			Auto sem-shaft casing
Line Pipe			Oil and gas conveying
Tubing and Casing			Oil and gas conveying
Drill Pipes			Well drilling
Geological Drilling Pipe			Geological drilling
Furnace Tubes, Heat Exchangers Tubes			Furnace tubes, heat exchangers
Chilled water pipe		Steam/condensate pipe	Heat exchanger pipe				Marine/offshore pipe	Dredging pipe	Industrial pipe
Oil and gas pipe		Fire fighting pipe	Construction/structure pipe				Irrigation pipe	Drai/sewage pipe	Biler tube

Product Treatment
Coating

3PE Coating

3PP Coating

FBE Coating

Epoxy Coating

Special Painting

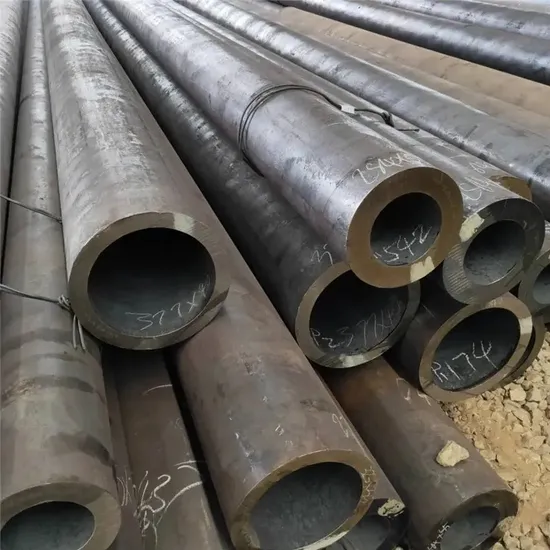

Detailed Photos
