Electro Hydraulic Stage for Heavy Duty Operations and Lifting Stage Efficiency

Product Description

Product Description
11. Ideal for scenarios where the lifting platform must descend to its lowest height, while accommodating a large stroke and bearing heavy loads effortlessly.
2. Achieves an impressive maximum lifting speed of 0.3m/s, ensuring efficiency and swift operations.
3. Experience a seamless and steady ascent with uniform speed for enhanced operational smoothness.
4. Guarantees precise positioning and exceptional synchronization accuracy for superior performance.
5. Powered by either electronic or hydraulic motors, providing a maintenance-free experience throughout its life span.
6. Boasts straightforward installation and model selection, combined with minimal maintenance costs for added convenience.
7. Ensures safety with its pollution-free and low-noise features, promoting a peaceful working environment.
2The Chain Link Transmission Lift operates by transforming horizontally moving chain links within the storage box into vertical movement. These chain links form rigid vertical columns, which competently bear vertical loads to achieve efficient and reliable vertical lifting.

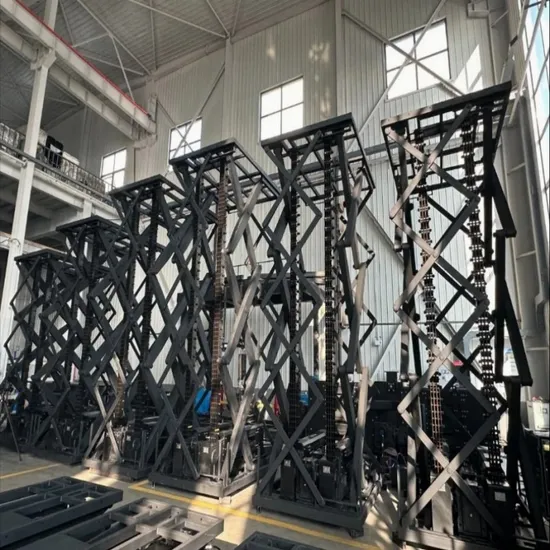

Detailed Photos
Product Parameters

DYN Load-Pitch of Chain Link
model		07A	11A	15A	19A	23A	27A	31A		35A	39A	47A	53A	63A	71A	77A
trip (m)		DYN Load (kN)
0		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.30		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.50		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.80		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.00		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.20		4.3	12	25	39	57	78	98		134	173	222	280	360	450	650
1.40		3	9	25	39	57	78	98		134	173	222	280	360	450	650
1.60			7	25	39	57	78	98		134	173	222	280	360	450	650
2.00			4	17	39	57	78	98		134	173	222	280	360	450	650
2.50				11	26	57	78	98		134	173	222	280	360	450	650
3.00					18	55	78	98		134	173	222	280	360	450	650
3.50						40	78	98		134	173	222	280	360	450	650
4.00						30	78	98		134	173	222	280	360	450	650
4.50						23	63	98		134	173	222	280	360	450	650
5.00							50	82		134	173	222	280	360	450	650
5.50							40	67		134	173	222	280	360	450	650
6.00							33	55		118	173	222	280	360	450	650
6.50								46		99	159	222	280	360	450	650
7.00								38		84	136	202	280	360	450	650
7.50										72	117	173	280	360	450	650
8.00										62	101	150	280	360	450	650
8.50										53	88	131	258	360	450	650
9.00											76	115	226	360	450	650
9.50												99	200	360	450	650
10.00												80	178	330	450	650
10.50													159	295	450	650
11.00													142	265	450	650
11.50													127	240	450	650
12.00														220	450	620
12.50														195	420	580
13.00														180	390	540
13.50														165	360	500
14.00															330	460
14.50															300	420
15.00															280	380
16.00															260	345
	Please call us for confirmation when selecting model of this color parameters.								The color or above parameters can be selected according to the design.

Certifications
Packaging & Shipping
Company Profile
Project:SHANGHAI EAST CHINA NORMAL UNIVERSITY In this prestigious project, Wanying Technology supplied an impressive array of infrastructure: a double-deck stage steel structure fence top, 45 precision-engineered lifting booms, 9 state-of-the-art synchronous receivers, a highly versatile set of movable counters, 4 meticulously crafted lifting stages, and 2 sets of
orchestral lifts. Furthermore, the project included a robust set of lifting railings, a durable steel fire curtain, and an additional 45 lifting booms, ensuring seamless and efficient stage operations..
Project:Shanghai Wild Animal Park This engaging project involved the installation of a dynamic double-deck stage steel structure fence top, along with 45 high-performance lifting booms, 9 advanced synchronous receivers, a set of adaptable movable counters, 4 innovative lifting stages, and 2 sets of cutting-edge orches-
tral lifts. Additionally, the inclusion of a set of lifting railings, a robust steel fire curtain, and 45 further lifting booms provides unmatched functionality and safety.
Project:Hengdian Film and Television Qinhuai Eight Beauties Theater For this cultural landmark, Wanying Technology delivered a comprehensive stage steel structure fence top, 46 strategically designed stage booms, 5 front single-point stages, an essential steel fire curtain, a dedicated lifting orchestra, and an Orchestra lifting railing. The project also featured plat-
forms, enhanced by 2 platform compensation platforms, culminating in a sophisticated and adaptive stage setup.
1. Company Overview
Wanying Technology (Taizhou) Co., Ltd., founded in the vibrant year of 2014, is a dynamic medium-sized industrial manufacturing powerhouse nestled in the picturesque city of Taizhou. Since inception, the company has been a beacon of excellence, steadfastly upholding the core values of "customer first, innovation, integrity, optimism, and resilience." Committed to relentless innovation, Wanying Technology has been at the forefront of breakthroughs in foreign trade and industrial manufacturing, consistently pushing the boundaries of what is possible.
2. Core Business
2.1 Foreign Trade
As a cornerstone of our operations, Wanying Technology has carved out a formidable presence on the global stage. By forging enduring partnerships with prestigious international enterprises, our top-tier products have earned widespread acclaim across continents. Through relentless optimization of supply chain management and unwavering enhancement of service quality, we deliver exceptional and efficient trade solutions that delight our clientele.
2.2 Industrial Manufacturing
In the arena of industrial manufacturing, Wanying Technology stands at the cutting edge, boasting state-of-the-art production facilities and a dedicated team of experts. Our commitment to excellence drives us to develop high-quality, high-performance industrial products that anticipate and fulfill the diverse needs of the market. We embrace industry trends, fostering product and technological innovation to stay ahead of the curve.
3. Innovation and Technology
Wanying Technology is deeply invested in the pursuit of technological advancement and innovation. We allocate substantial resources to the development of groundbreaking technologies and pioneering products. By partnering with esteemed universities and research institutions, we engage in fruitful collaborations that propel technological progress and power industrial advancements within our sector.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detailed requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a exact quote!
2.What the information should I provide when inquirying?
Thanks for your question. The more information you provide, the accurater solution we can prepare for you! It will be more
appreciated if you give us the information such as the lift capacity, span, lift height, power source or other specials.
3.How many operation methods for my selection?
Thanks for your question. The standard operating methods is controller with push buttons. Meanwhile, we can also provide the group controller.You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane OK for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional engineer.
