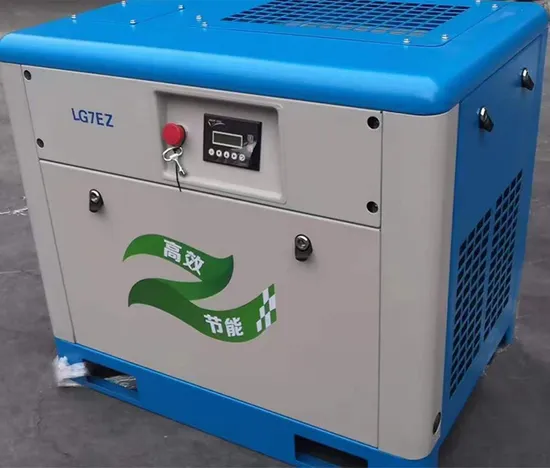

3 Phase 10HP 7.5kw 0.8MPa Electric Motor Direct Driven Screw Air Compressor

Product Description

Product Description
Application LG series vertical type screw air compressor widely used in textile, spraying, chemical, food, electronic, medical, railway, building materials. Features: 1.Supporting large rotor, low speed and high quality main engine, high efficiency, low noise, long life, especially suitable for low noise working occasions. 2.External oil and gas separation core, rated flow is much larger than exhaust, good oil effect, long service life, easy maintenance. 3.Supporting imported brand air and oil filters to provide the best protection for the nose. 4.Microcomputer control, complete control and protection functions, data settings adjustment, fault inquiry convenient, realize unattended. Detailed Photos
Product Parameters

Model	LG7EZ	LG11EZ	LG22EZ	LG37EZ	LG55EZ	LG75EZ
Air Displacement(m3/min)	1.15	1.65	3.6	6.1	10.2	13.5
Working Pressure(bar)	8	8	8	8	8	8
Compression stage	1	1	1	1	1	1
Motor Model	Y2-132S2-2	Y2-132M-2	LY-160L-2	LY-180L-2	Y2-225M-2	Y2-250M-2
Motor power(kw)	7.5	11	22	37	55	75
Rotate speed(rpm)	2950	2950	2950	2950	2950	2950
Voltage(V/P/Hz)	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Start method	Y-Δ	Directly	Y-Δ	Y-Δ	Y-Δ	Y-Δ
Transfer method	Direct-driven	Direct-driven	Direct-driven	Direct-driven	Direct-driven	Direct-driven
Connector size	3/4"	3/4"	1"	11/2"
Cooling method	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Dimension(L*W*H)mm	800*520*840	1020*640*865	1300*750*1200	1300*880*1250	1600*970	1750*1030
					*1450	*1450
Weight(kg)	200	300	550	750	1300	1600

Company Profile
Founded in 1997, our factory has become one of the most powerful air compressor equipment and engineering drilling equipment manufacturers in China, and is a member of the national compressor industry association, drilling machinery and pneumatic tools industry association, and a drafting unit of national standards. All the products have passed the quality system certification of ISO9001:2000 and national inspection-free products. Its total registered capital of 245 million yuan, holding 10 subsidiaries, is a set of technology research and development, production and manufacturing, sales and service functions in one of the modern machinery and equipment manufacturing enterprises,the enterprise covers an area of 31000m2. The group has more than 1100 employees, including more than 100 middle and senior technical personnel. The group has established close cooperative relations with many domestic famous universities and other scientific research institutes, with strong product research and development capabilities. Now as the main exporter of drilling rigs and air compressors equipment in China. It has exported to more sixty countries such as Southeast Asia, South America, Africa, Eastern Europe, Russia etc. Excellent quality and perfect service gain the consistent praise from customers.
FAQ Q1: Are you factory or trade company?A1: We are factory. And we have ourselves trading company.Q2: Warranty terms of your machine?A2: One year warranty for the machine and technical support according to your needs.Q3: Will you provide some spare parts of the machines? A3: Yes, of course.Q4: What about the voltage of products??Can they be customized?A4: Yes, of course. The voltage can be customized according to your equirement.Q5: How long will you take to arrange production?A5: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 20-30 days.Q6: Can you accept OEM orders?A6: Yes, with professional design team, OEM orders are highly welcome.Q7 Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
