New Design Automatic Log Veneer Rotary Peeling Lathe Exported Africa and Americas

Product Description

Product Description

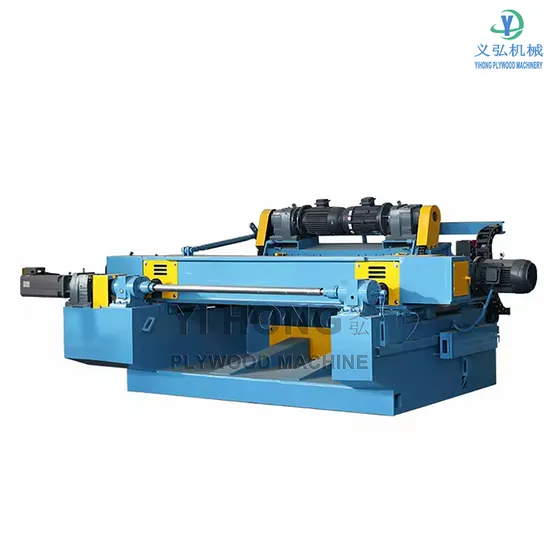

Veneer Peeling Machine
Veneer Peeling Machine is also named Rotary Cutting Machine, which widely used in plywood industrial. After stem was peeled bark by log debarker machine, the cylinder logs will be peeled into veneer sheets by veneer peeling machine, and then cut into target width by the veneer clipper machine.
According to chuck type, veneer peeling machine would be classified to two type. spindle chuck and spind-less chuck.
The face / back veneer of plywood is required to be neat and smooth, so spindle peeling lathe machine is usually used; however plywood core veneer is required large quantity and flat surface, therefore spindle lees peeling lathe is specailly inquiry.
Generally, a complete plywood factory must purchase these two types of machines.
Spindle-less veneer peeling lathe is integrated peeling and cutting function. Peeling wood veneer while the logs are rotated by driving both single and double rollers. Meanwhile the internal rotary clipper performs precise cutting under PLC control.
Specification

Model	VP-DP130	VP-DP260
Max.Log Length	1400mm	2800 mm
Max.Log Diameter	Φ 550 mm	Φ 550 mm
Min.Rod Diameter	Φ 28 mm	Φ 32 mm
Peeling Speed	50-120 m/min	40-100 m/min
Veneer Thickness	0.5-4.0 mm	0.5-3.6 mm
Peeling Knife	1500x18x16mm	2900x18x16 mm
Automatic Adjust thickness/width	Option	Option
Hydraulic Knife Holder	Option	Option
Production Capacity	4 m3/h	7 m3/h
Total Power	45.4KW	60.0KW
Total Weight	6800KG	11200KG
Dimensions	4800x2200x1500mm	5800x2300x1500mm

Product Advantages

Company Profile
Yihong Machinery Co., Ltd.
Yihong is ocated in Linyi City, China. manufacture complete veneer production line, such as veneer peeling machine, log debarking machine, veneer stacking machine, blade sharpening machine, log cutting machine and supply plywood production line, including veneer paving line, veneer composer, veneer patching machine, glue spreader, hot press and DD saw, meanwhile supply OSB flakers for OSB and particleboard production.
Since 1988, YH focus on the R&D and manufacturing of wood processing equipment. With exquisite technology and excellent product quality, we have won recognition from domestic and overseas customers. YH own import and export lience, over 20 years YH machine are exported to more than twenty countries and regions in Asia, Europe, Africa and Americas.
Great Project
Packaging & Shipping

FAQ
Q1. Are you manufacturer or trading company?
A1. We are munufacturer with export lience. Yihong machine have been sold to more than 30+ country with 30 years manufacturing experience, established satisfactory service branch.
Q2. How to ensure machine quality?
A2. All machine have to be tested well before shipment, then arrange overseas engineer install and test again. Ensure your machine running well .
Q3. What's your warranty?
A3. Machine body have 2 years warranty. always carry some spare parts when shipping, clients could change it easily.
Q4. How to buy machine?
A4. Tell us your factory, we will offer plan drawings and offer quotation. then overseas engineer will install machine to your plywood mill.
