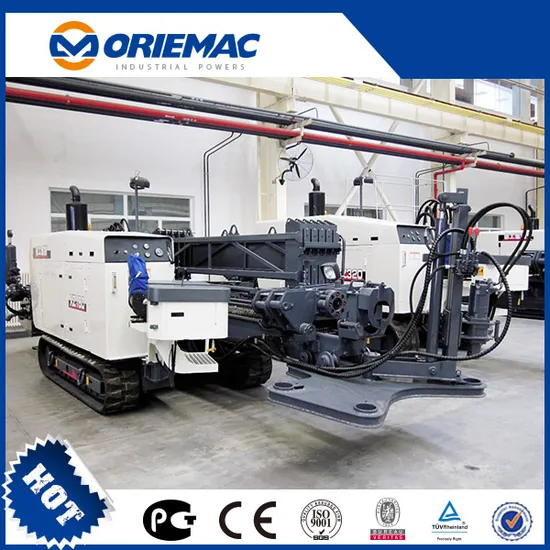

Oriemac Xz320 Horizontal Directional Drill
| US$40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XZ320
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Engine
D6114zg
Engine Rated Power
140kw
Max.Pullback/Thrusting
320kn
Dimension (Lxwxh)
7100*2300*2500mm
Overall Weight
10500kg
Transport Package
Nude Packing
Specification
CE, ISO9001
Trademark
ORIEMAC
Origin
Jiangsu, China
HS Code
84306919
Production Capacity
100 Set/Sets / Month
Product Description
Oriemac XZ320 Horizontal Directional DrillThese kind of horizontal directional drill mainly used under the condition of non-excavating ground surface, laying and replacing various kinds of underground pipes and lines.
The machine features advanced performance, high efficiency, and comfortable operation, and the key parts
All matches international standards. It is the optimal equipment for the construction in the fields of water
Supply, gas supply, as well as electricity, telecommunication, heating, and petroleum supply.
Model | XZ280 | XZ320 | |||
Engine Model | Shangchai D6114ZG | Shangchai D6114ZG | |||
Rated engine power(KW/r/min) | 140/2300 | 140/2300 | |||
Max. pullback/thrusting(kN) | 280/280 | 320/200 | |||
Max torque of driving head(N.m) | 10000 | 12000 | |||
Driving head speed(r/min) | 0-120 | 0-140 | |||
Bore diameter(m) | 400 | ||||
Max backreaming diameter(mm) | Ø750 | Ø800 | |||
Drill pipe length(single)(m) | 3 | 3m | |||
Drill pipe diameter (mm) | Ø73 | Ø73 | |||
Drilling angle(@) | 10-23 | 10-20 | |||
Max flow rate of mud(L/min) | 250 | 320 | |||
Max mud pressure(bar) | 80 | 80 | |||
Overall weight(kg) | 12500 | 10500 | |||
Dimension (mm) | Length | 7100 | 7100 | ||
Width | 2260 | 2300 | |||
Height | 2450 | 2500 | |||
As a leading Chinese machinery and truck exporter, we have 20 years professional experience in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service. We will always do our best to solve all the problems and put our customer's interests in the first place.
