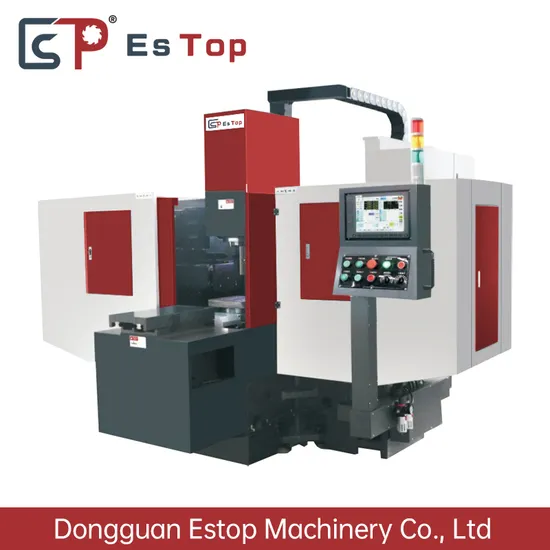

Estop High-Precision Blank-Mould and Gear Duplex CNC Milling Machine Running Like Hamai

Estop High-Precision Blank-Mould and Gear Duplex CNC Milling Machine Running Like Hamai

US$10,800.00-16,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
TH430NC
Type
Worktable Milling Machine
Object
Gear
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Applicable Industry
Precision Mold, Ultra-Precision Parts Ect.
Key Selling Points
Easy to Operate
Worktable Size
330mm*330mm
Worktable Max Load
400kg
Machine Weight(Approx.)
6000kg
Color
Tailored
Transport Package
Non-Fumigation Plywood Case
Specification
Customizable
Trademark
EsTop
Origin
China
HS Code
8460191000
Production Capacity
15000 Units Per Year

Packaging & Delivery

Package Size
350.00cm * 320.00cm * 320.00cm
Package Gross Weight
6500.000kg

Product Description


Professional Manufacturer High Productivity CNC Duplex milling machine The ES-TOP series of duplex milling machines make it simple to machine precision angles and dimensions on blocks and plates for any application. -Easy to use input screen for parameters.
-Once the cycle is complete, the clamps retract and the finished part can be removed and replaced with the next.
-Continuously summarize and improve through long-term operational practice, develop and improve various functions, make it easier to operate, safer and faster.
Product Details:
Product Parameters
Product Parameters:
Items Name Specification
CNC TWIN HEAD MILLING MACHINE TH-430NC TH-430NC
Cutting capacity
Control axis number 4
Cutting capacity(mm) 2*2.0
Cutting width(mm) 15-430
Worktable Dimension(mm) 330*330
Max loading weight 400
Spindle Spindle speed(Infinitely variable speeds) 50-500
Spindle power(KW) 2*7.5
Spindle taper NT50
Cutting diameter(mm) 200
X axis X/Y/Z axis motor power(KW) 1.8/1.8/1.8
Y axis X/Y/Z Max feed speed(m/min) 8000/8000/8000
Z axis X/Y/Z Max cutting speed(m/min) 6000/6000/6000
Precision
Squareness mm/300mm 0.02
Precision for dimension mm/300mm 0.02
Tank capacity Hydraulic oil tank L 60
Lubrication oil tank L 3
Power Power AC380V/220 30KVA
Net weight Machine net weight(KG) 6000

Main part of CNC TWIN HEAD MILLING MACHINE TH-430N
Sort Name Quantity Origin Remark
Machinery Worktable ball screw 3 Taiwan HIWIN steady transmission, High accuracy, wear-proof
guide rail 3 High frequency hardened rail of Quenching Good bearing, Heavy cutting
Main Spindle (Horizontal) 2 Taiwan POSA Low noise, high strength, Taiwan famous brand
Flexible stainless steel plate shield of worktable 2 Domestic High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
Base casting 1 HT150 Good stability, excellent wear-ability
Automatic lubricating machine 3 Domestic Electronic-self-lubrication, Quantitative oil supply to the each part
Oil line 3
Domestic
Copper tube
Bearing Germany World famous brand, High accuracy, High quality
Electrical appliances CNC system 1 Japan Mitsubishi Japan brand of CNC
Servo motor 3 Japan Mitsubishi Japan brand of CNC
High precision rotary table 1 Taiwan Central Star Taiwan famous brand, High accuracy
Spindle motor 2 CTB Multitronic, Meet the requirements of different processing speed
AC contactor Taiwan TECO Famous brand, steady property
Relay Japan OMRON

Product Category
You can click on the picture to view the products you are interested in.
Our Service
-Technically training
On-site installation and commissioning and sample testing, one-to-one, hand-to-hand teaching, remote VR technical support, etc.
-Maintenance
Complete machine warranty for one year, lifelong maintenance, after-sales maintenance. Provide solutions within 12 hours and send field technical solutions within 48 hours.
-24/7 with customer support
We provide exclusive solutions and timely technical support for 7X24 hours online video guidance to help you improve productivity and solve your processing problems.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
