Aquaculture Floating Fish Feed Pelleting Making Machine for Aquaculture Feed Suppliers

Product Description

Aquaculture Floating fish feed pelleting making machine for aquaculture feed suppliers
1.Fish feed extruder machine Introduction:
Fish feed extruder includes steam methord machine and dry methord machine. In this article, two methords fish feed machine will be introduced.
Dry methord floating fish feed pellet machine includes two series. One series is DLG serie single screw extruder fish feed machine. The other series is TSE series twin screw extruder fish feed machine.
DLG Series processing line is mainly for producing fish feed. TSE Series processing line is always popular in fish feed area and pet food area.
Steam methord floating fish feed pellet machine should work with steam system. The output is big with low electrical energy.
2. Fish feed extruder machine flow chart:

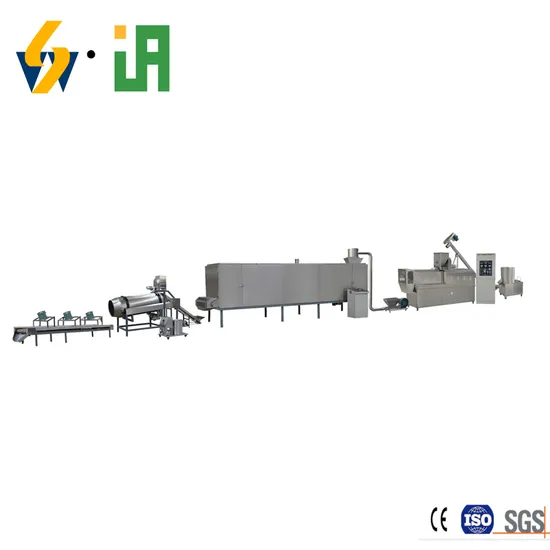

2.1 mixer → screw conveyer → TSE65 twin-screw extruder → hoister(air conveyer) → 5-layer 5 meter drying oven → single drum flavoring line
2.2 Technical parameters:

Model	TSE65	TSE70	TSE85	TSE90	TSE95
Output	150kg/h	250kg/h	500kg/h	1000kg/h	1500kg/h
Installed power	80kw	100kw	150kw	180kw	200kw
Dimension(m) (L×W×H)	15×2×3	22×2×3	28×3×3.5	40×5×6	50×5×6

3.The features of fish feed extruder machine
3.1.The main extruder adopts frequency speed controlling with high automation.
3.2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
3.4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
3.5.It has the widest range of applications and can produce different products with different equipment and models.
4. HOW IS FISH FEED MANUFACTURED ?
HOW DOES FISH FEED EXTRUDER MACHINE PRODUCE FISH FOOD?
4.1 Typical raw materials used in fish feed processing include cereal flour, vegetable proteins, minerals and vitamins and, in some cases, meat or fish flour and fresh meat.
4.2.The dry ingredients enter the the pre-conditioner and are steam-hydrated. The counter-rotary twin shaft unit blends the ingredients and ensures proper mixing of steam, moisture and ingredients. Preconditioning produces partial gelatinization of starches and texturing of polymers
4.3 The partially cooked mixture is then fed to the twin-screw extruder. Shearing, internal temperature, pressure, moisture and residence times are accurately controlled to achieve optimum starch gelatinization without loss of food quality. Liquids or steam may be injected through ports in the extruder barrel at various processing stages. Degassing is possible at this stage using a vent-stuffer.
4.4 Granules are then shaped when they are extruded through the die. They are then put through a dryer, which reduces moisture (generally between 8 and 10%). The product is then coated, and flavoring and fat is added before cooling and packaging.
4.5 Fish feed samples which are produced by the fish feed extruder machine:
5. Our service
We provide local services to all our markets by offering our advice and expertise: spare parts and upgrading, equipment and ancillary modules, automation systems, training, process support and remote and on-site maintenance. Technical support is provided by a team of specialists.
-- Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
6. Our com pany Information:
Leveraging our expertise in twin-screw and single-screw technology, we provide integrated turnkey extruder production lines, dryers and ancillary equipment to our customers.These reliable and innovative systems are mainly served for"Food & Feed"industry.
Sunward is constantly innovating through co-development partnership projects with its customers in every cooperation with our customers.The company, which has a strong quality culture and a commitment to responsible environmental action, is certified ISO 9001 and CE.
We provide local services to all our markets by offering our advice and expertise: spare parts and upgrading, equipment and ancillary modules, automation systems, training, process support and remote and on-site maintenance. Technical support is provided by a team of specialists.
7. FAQ
Q1. Are you a factory or a trading company ?
Sunward : We are a professional manufacturing factory with trading department.
Q2. Could we visit your factory to check the machines ?
Sunward : Of course . Welcome to visit our factory warmly !
Q3. Where is your factory ?
Sunward : Our factory is located in Jinan city, China. It takes you 3 hours by air or 10.5 hours by high-speed train from Guangzhou to Jinan. And if you are from Shanghai, then it only needs 1.5 hours by air or 4 hours by high-speed train. What's more, we could pick you up when you arrived airport or train station.
Q4. Could we test our own raw materials with your machines before making order ?
Sunward : We would like to test your material with our machines freely for you.
Q5. What's your payment terms ?
Sunward : The general one is 30% as deposit, and then the balanced money is paid before delivery. But we could also accept L/C.
Q6. What about your after-sale service ?
Sunward: If you order the full-automatic production line machines, we could dispatch our engineer to your factory for installation and training. And if it is single machine, then we could send you the operation video.
