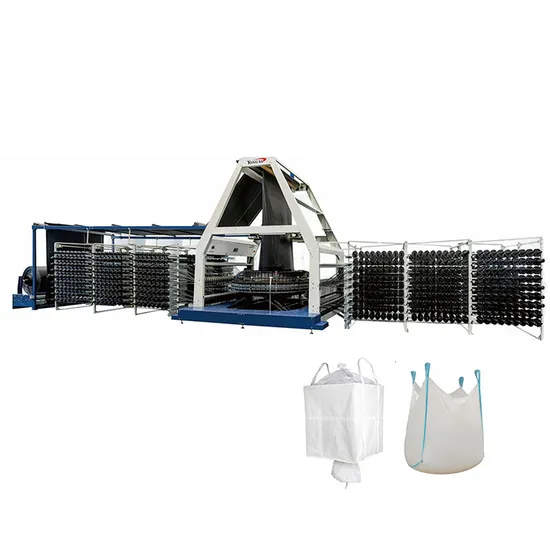

1 Ton 1.5 Ton Jumbo Bag Circular Loom Machine

Product Description

Product Description
Application
This series plastic circular loom is specially designed for the high quality wide tubular or flat fabric by PP and HDPE for jumbo bag, geotextile, tarpaulin and so on.
Technical Data

S/N.	Items	Parameters
1)	Model	YX-FYB1850/8	YX-FYB2100/8	YX-FYB2300/8
2)	Shuttle	8 Shuttles	8 Shuttles	8 Shuttles
3)	Folded width	1450-1850mm	1700-2100mm	1800-2200mm
4)	Production speed	60-120 meter/hour, depend on the final width of yarn.	60-120 meter/hour, depend on the final width of yarn.	55-110 meter/hour, depend on the final width of yarn.
5)	Number Of tapes	Max. 2304 spindles	Max. 2880 spindles	Max. 2880 spindles
6)	Main motor power(kw)	7.5kw	7.5kw	7.5kw
7)	Prime motor rotational speed(r/min)	20-85	20-85	20-60
8)	Weft yarn density	32-64pcs/100mm	32-64pcs/100mm	32-64pcs/100mm
9)	Counting clock	Electronic counting meter	Electronic counting meter	Electronic counting meter
10)	warp yarn diameter	Max. φ140mm	Max. φ140mm	Max. φ140mm
11)	Weft yarn diameter	Max. φ105mm	Max. φ105mm	Max. φ105mm
12)	Winders Motor	100kg.cm	100kg.cm	100kg.cm
13)	Warp beam let-off device	Initiative warp yarn let-off	Initiative warp yarn let-off	Initiative warp yarn let-off
14)	Warp yarn broken control	Automatic stop for warp breaking	Automatic stop for warp breaking	Automatic stop for warp breaking
15)	Weft yarn broken control	Automatic stop after weft breaking and weft completion	Automatic stop after weft breaking and weft completion	Automatic stop after weft breaking and weft completion
16)	Winding width	Winding width 1800mm	Winding width 2100mm	Winding width 2300mm
17)	Winding diameter	Max. 1100mm	Max. 1200mm	Max. 1200mm
18)	Installing Dimensions (L*W*H)	about 14500*3700*4500mm	about 16200*3750*4500mm	about 16200*3750*4500mm
19)	Weight(kg)	about 6000	about 7000	about 7000
20)	Power distribution cabinet	The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data.	The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data.	The whole system adopts PLC+ touch screen control. The whole machine is equipped with synchronous rise and fall speed linkage, emergency shutdown, and real-time adjustment and monitoring of all effective data.

Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.
