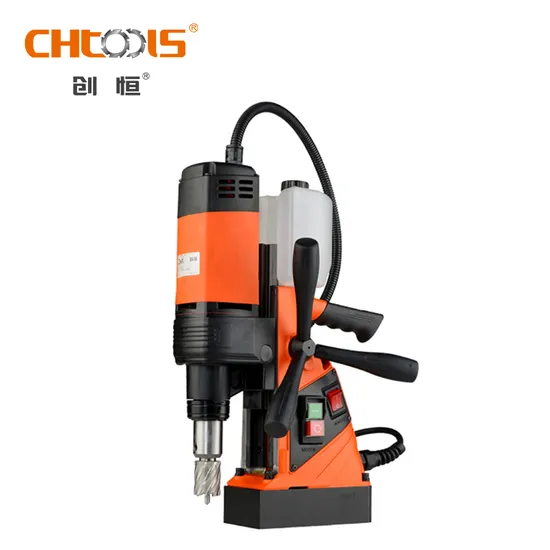

Chinese Factory Chtools Small Portable Magnetic Drill Machines
| US$290.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DX-35
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Other
Hole Diameter
35mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001, ISO4001
Condition
New
Magnetic Adhesion
10000n
The Type of Shank
19.05mm
The Max Cutting Depth
50mm
The Max Cutter Capacity
35mm
Countersunk Drilling
10-35mm
Load Speed
450rpm
Stroke
120mm
Transport Package
Plastic Box
Specification
55*22*45cm
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8459290000
Production Capacity
10000sets/Month
Product Description
Application:
Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.
| Product Type | DX-35 | DX-60 |
| Stroke | 120mm | 170mm |
| Magnetic base bize | 167*84*44mm | 210*100*45mm |
| Input power | 1100W | 1500W |
| The max cutting depth | 50mm (2") | 75mm |
| The max cutter capacity diameter | 35mm (1-3/8") | 60mm |
| Motor can adjust the height to | 95mm | 130mm |
| The max diameter of twist drill | 13mm | 31.5mm |
| The min cutter depth | 10mm | 10mm |
| Magnetic adhesion | 10000N | 15000N |
| The type of shank | 19.05mm (3/4") | MT3 |
| Total weight | 15.4kg | 19kg |
| Load speed | 450rpm | 250/450rpm |
| Countersunk drilling | 10-35mm | 10-50mm |
