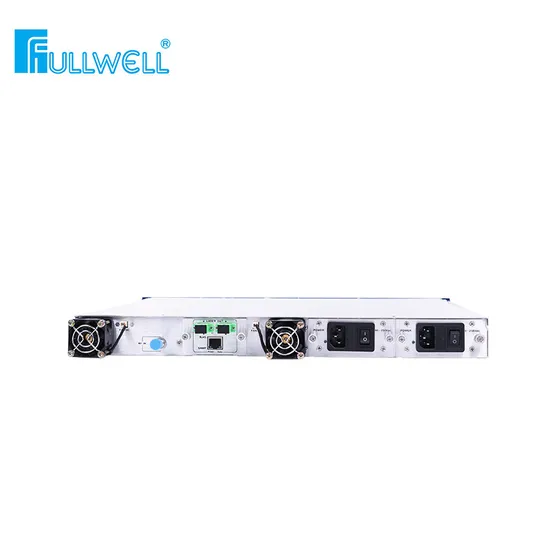

Fullwell 1550nm Optical Transmitter with 60km

Product Description

CATV 1550nm External Modulation Optical Transmitter
CNR>52dB, SBS:13,16,18dBm adj.
FWT-1550ES -2x7dBm

Features
1. 90KM transmission.
2. JDSU modulator
3. SBS:13/16/18dB adj.
4. CNR≥52, CSO≤-65, CTB≤-57.
5. Front panel display for operating parameters and warming.
6. SNMP, RJ45 port, operates through web interface easily.
7. Hot-plug switching power supply design. (90~265VAC)
8. OEM offered.
Main technical indicators

Items			Parameter	Remark
Optic Parameters	Operating wavelength	(nm)	1550±10
	Output power	(dBm)	2×4	1×5,1×6,1×7,1x8,1x9,
				2×3,2×4,2×5 , 2×6 , 2×7
	Return loss	(dB)	≥52
	Optical fiber connector		SC/APC	Optional SC/APC,FC/APC
RF Parameters	Bandwidth	(MHz)	45-862
	Input level	(dBmV)	23±5	AGC
	Flatness	(dB)	≤±0.75	45~862MHz
	Return loss	(dB)	>16	45~750MHz
	Input Impedance	(Ω)	75
Link Parameters	Channels		PAL-D/60ch
	CNR	(dB)	≥52	65Km fiber,Receive0dBm
	CTB	(dB)	≤-57
	CSO	(dB)	≤-65
	SBS	(dB)	≥16.0	13,16,18dB adj.
General Parameters	NM interface		RJ45
	Power	(V)	90~265	Optional -48VDC
	Power consumption	(W)	≤50
	Working Temp	(ºC)	0~50	Automatically casing temp control
	Storage Temp	(ºC)	,-20~85
	Operating relative humidity	(%)	5~95
	Size	(")	19×14.5×1.75	(W)x(D)x(H)

Network Application
