PLC Control Colored Cold Steel Glazed Roof Tile Making Machine /Step Tile Roofing Sheet Roll Forming Machine

Product Description

Introduction

Product Description

BH Glazed Tile Roll Forming Machine
Technical Parameter

Production Name	BH Glazed Tile Roll Forming Machine
Specification of Rolling Material	1250×(0.4-0.8)×L,Yield Strength ≤250MPa
Working Speed	12-15m/min
Roller Steps	16 Steps
Frame of Machine	Welded with 350H Beam Steel
Thickness of Wallboard	16mm
Roller Material	Adopts Superior 45# Forged Steel with Hard Chromium Plated
Shaft Material	Adopts Superior 45# Forged Steel Quenching and Tempering
Main Shaft Diameter	¢70 mm
Main Motor Power	5.5KW
Hydraulic Station Power	4.0KW
Hydraulic Station Pressure	8 -12MPa
Electric Control System	Adopts PLC
Machine Size	7500x1700x1400mm

Related Production

Model	Feeding Width	Effective Width	Thickness Coil
BH-25.5-185-740	1000mm	740mm	0.3-0.8mm
BH-45-253-760	1000mm	760mm	0.3-0.8mm
BH-24-200-800	1000mm	800mm	0.3-0.8mm
BH-37-166-830	1250mm	830mm	0.3-0.8mm
BH-52-169-845	1000mm	845mm	0.3-0.8mm
BH-29-185-925	1000mm	925mm	0.3-0.8mm
BH-39-190-950	1000mm	950mm	0.3-0.8mm
BH-40-200-1000	1200mm	1000mm	0.3-0.8mm
BH-40-257-1028	1250mm	1028mm	0.3-0.8mm
BH-24-183-1100	1250mm	1100mm	0.3-0.8mm
BH-25-210-1122	1200mm	1122mm	0.3-0.8mm

Machine Profile Drawing Manual Cutter Guiding Machine Forming Machine Punching Machine
Cutting Machine Hydraulic System PLC Control System
Equipmnent configuration
Working Flow
Loading-----De-coiling & Feeding-----Adjusting & Guiding-----Roll Forming----- Punching after Roll Forming-----Cutting-----Run Our Table

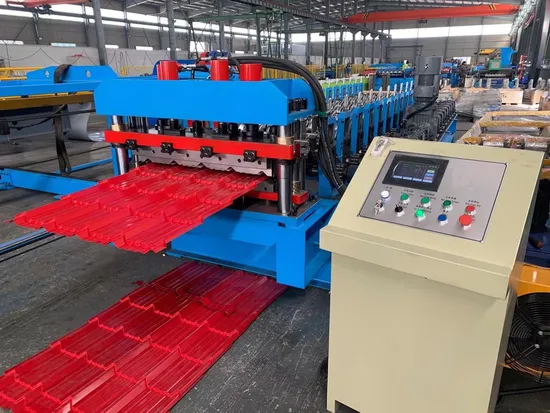

Machine pictures
Machine Photo
Company Profile
Our Company
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Certifications
Certificate:
Packaging & Shipping
Delivery
FAQ
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
