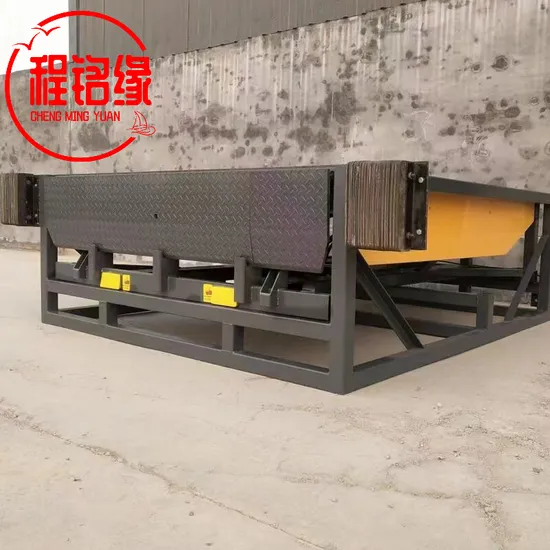

Versatile Cargo Lifting Platform for Efficient Loading and Unloading

Product Description

Main Platform:
1. Surface sheet:6mm-8mm thick completely whole set steel plate according to loading capacity;
2. Whole-piece steel sheet, rather than welded joined sheet like competitors, with much higher strength and work life;
3. Underneath support: high-density steel tube or C-channel to support the surface sheet.;
4. Surface treatment: blasting and powder coating, with high rust proof performance
Top Lip:
1. Material: 12-16mm thick steel sheet;
2. Surface treatment: blasting and powder coating. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing.
Hydraulic Motor:
1. Power supply :3-phase 380V/50Hz 2. Output power:0.75KW-1.5KW;
3. Top China brand or Italy brand;
4. Overheating self-protection function.
Control Panel :1.Multiple-function controller, with three functional parts:
2.Operation button: press one time, the whole procedure started until finish;
3.Power-switch button: switch off power easily when necessary, like work-off, daily maintenance, or repairing;
4.Emergency stop button: it can stop the dock leveler immediately when.there is something emergency. This can help protect workers and avoid accidents;
Dock Bumper:
1. One pair for each dock leveler;
2. Wear-proof high-strength rubber material;
3. To be fixed onto concrete with expansion bolts.
Our Dock Leveler Features:
1.The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours,
the deformation is within 3mm. And after pressure released , the deformation will recover.
2. Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove mil-
ling to make it anti-skid.
3. Hinge and Shaft , are Super-High-Temperature heat treated, to reduce its deformation
4. Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high fre-
quency because of very low work temperature of oil. High standard seal avoids oil leaking.
5. Surface treatment:Coated with epoxy resin paint, very durable and high anti-corrosive.
6.Blue, Grey, Green, or customized
We supply whole set Complete Loading Bay or Dock: (Dock Leveler ,Sectional Door ,and Dock shelter )
Loading Bay is a complete assembly of Overhead Door, Dock Leveler and Dock Shelter&Seal.
It is widely seen in wareh-house, factory, and logistics industry. These three parts work together to improve loading efficiency and protect indoor enviroment.
