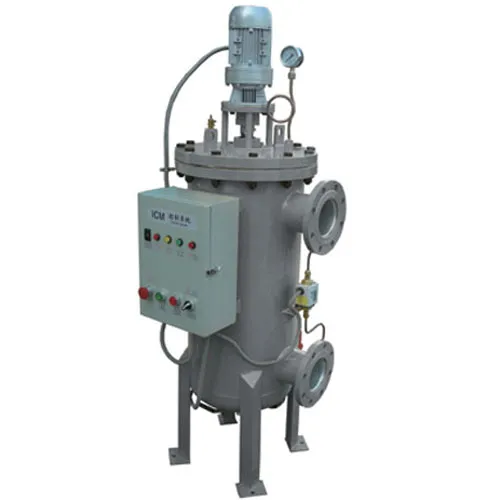

Industrial Water Treatment Filter Vertical Automatic Self Cleaning Filter for Waste Water/River Water

Product Description

Product Introduction
The LRC type automatic self-cleaning filter developed and produced by our company integrates the latest technology and process, with its advanced and reasonable structural form and reliable performance leading other forms of water filters.
This product can effectively and reliably filter out mechanical impurities in industrial circulating water, and is widely used in continuous water use applications such as metallurgy, chemical industry, and power generation. Especially in steel plants, the purification and treatment of turbid water from hot rolling and continuous casting (containing iron oxide scale and oil), as well as the side filtration treatment effect in the clean circulation system, are particularly significant.
Structure and Working Principle
The automatic self-cleaning filter consists of several parts, including the tank body, filter column, backwash structure, reducer, electric valve, differential pressure controller, and electric control box. The horizontal partition inside the tank divides it into two chambers: the outer is the clear water area, and the inner cylinder is the muddy water area. The two are completely separated, and several stainless steel filter columns are installed on the horizontal partition. The raw water to be treated enters the turbid water area through the inlet and enters the inner chamber of the filter column through the water distribution hole on the partition. Impurities larger than the gap of the filter column are intercepted, and clean water enters the clean water area through the gap. All liquids filtered by the filter column converge in the clear water area and finally flow out from the outlet.
When impurities accumulate to a certain thickness in the filter column, a pressure difference will occur between the clear water area and the turbid water area. At this time, the differential pressure controller can automatically control the backwash mechanism to start, or the backwash system can be manually started to remove the filter residue.
Detailed Photos
Product Parameters

Model	DN	D	H1	H2	H3	n-φ	D1	D2	K	d	a	b	d1	Capacity (T/H)
LRC100-1.6	125	400	723	1083	2286	8-Φ18	280	250	210	184	100	100	14	100
LRC200-1.6	200	500	765	1145	2380	12-φ22	350	340	295	266	140	100	18	200
LRC300-1.6	200	500	765	1145	2380	12-φ26	350	405	355	319	140	100	18	300
LRC400-1.6	250	600	812	1222	2509	12-φ26	420	405	355	319	160	120	23	400
LRC500-1.6	300	700	883	1273	2643	12-φ26	490	460	410	370	160	120	23	500
LRC600-1.6	300	800	883	1273	2643	12-Φ26	490	460	410	370	160	120	23	600
LRC800-1.6	350	800	982	1410	2882	12-φ26	630	520	470	429	200	150	23	800
LRC1000-1.6	450	900	1042	1520	3079	16-φ30	700	580	525	480	200	150	23	1000
LRC1500-1.6	500	1200	1500	1500	3700	20-φ33	1050	715	650	609	200	150	23	1500
LRC2000-1.6	600	1600	1600	1600	3900	20-φ33	1350	840	770	720	200	180	28	2000
LRC2500-1.6	700	1800	1700	1700	4100	24-φ33	1550	910	840	794	200	180	28	2500
