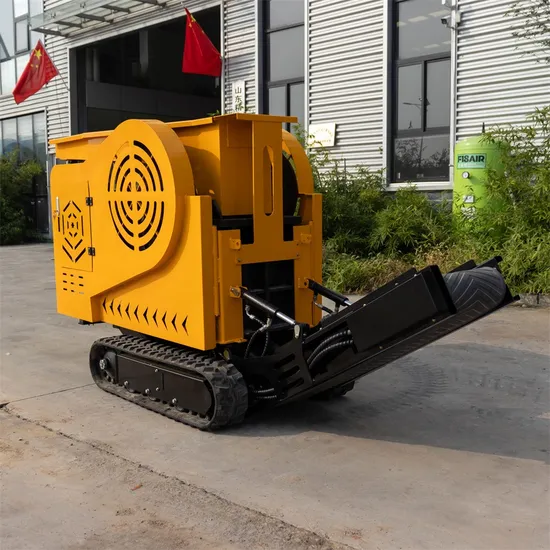

Core Components Engine Motor Stone Crusher Jaw Crushers Crushing Machine Mining Ore Manufacturing Plant Construction New

Product Description

Company Profile
ABOUT US
Shandong Hightop Group is a large-scale engineering construction machinery and equipment manufacturing group integrating scientific research, production and service. Its headquarter is located in Jining City, Shandong Province, covering an area of about 133,000 sq meters and a total of more than 300 employees.Hightop group is "Specialization, Refinement, Distinctive, Novelty" honorary enterprises of Jining city, and has introduced as a key project enterprise by goverment of The Economic and Technological Development administrative districtManufacturing Technique
How Our High-Quality excavator skid loader Benefit You?
For Consumers:
"Our Excavator,Skid loader offer affordability, customizability, and a diverse selection of models, whether
model,to perfectly match your needs."
For Suppliers:
"Our excavator,skid loader redefine industry standards with innovative features, durability, and exceptional support. Maximize
profitability with competitive pricing and lucrative incentives. Additionally, we provide top-notch after-sales services,including
equipment installation, commissioning, and maintenance, all aimed at safeguarding our customers' interests. Contact us to become a
dealer partner and unlock boundless opportunities in the construction industry. "

Product Paramenters

1,Equipment Spcification
working size(mm):	3200×1000×1620
Vertical plate inner width(mm)	380
Transportation dimensions(mm):	2100×1000×1750
Total outerwidth ofthe protective cover(mm):	960
Crawler model(mm):	180×72×41
Bearing wheel diameter(mm):	126
Number of heavy wheel bearings():	6
Feedportsize(mm):	220×350
Maximumfeed size (mm):	200
BarentVolume(m3):	0.25
Stacking height(mm):	700-1150
Feeder conveyor(mm):	1500×500
Graofrange(mm):	calibre1.5-6CM
travel speed(km/h):	0-3
Track specifications:	Rubber Crawler
Production capacity (T / h ton / hour)	2T-5T/h
Delivery BeltWidth(mm)	400
2. Operation form and the parameters of the main accessories
Equipment Operation Methods	Manual hydraulic valve
Way to walk	Hydraulic power tracked type
Walking motor model	6K-395
ContinuousTorque (N.m):	850
Hydraulic pump specifications:	PGP5108
Model of the conveyor mechanism motor:	BMER-300
Conveyor lifting mode:	Manual operation of the hydraulic lift
Lubrication mode of jaw breaking mechanism	Grease
Adjustment method of track tightening	mechanical
3. dynamical system
Standard gasoline engine:	Runtong R500-V2-18HP
output powermax	13KW/3600r/min
torque outputmax	28N.m/2500r/min
fuel tank capacity /L	6.5
4. Oil product type and dosage
Fuel tank volume / L	gasoline engine6.5L
Oil volume / L	1.0L
Hydraulic oil tank volume / L	35L 32#/46#hydraulic oil

Detail Presentation
