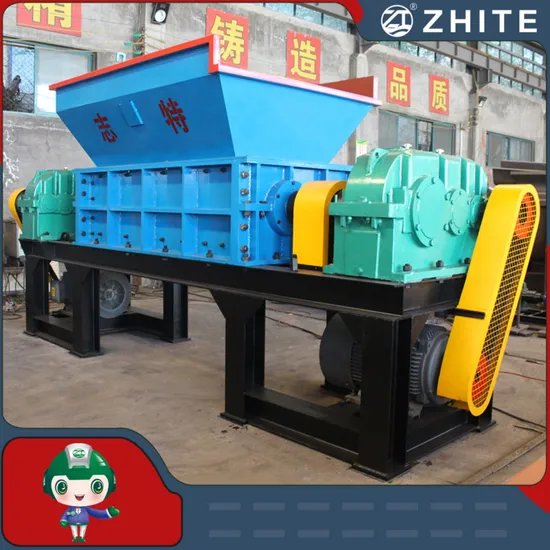

Scrap Metal Plastic Crusher Medical Waste Double Shaft Shredder Machine

Product Description

Scrap Metal Plastic Crusher Medical Waste Double shaft shredder machine Product Description
The main function of the two shaft scrap metal shredder crusher is to squeeze large pieces of material and large diameter drums of metal materials transported through the front cut of the shredder into sheet materials that meet the requirements. Large metal shredder not only improves the production capacity and crushing efficiency, but also expands the scope of application, metal shredder products make full use of impact, shear, mutual impact, grinding and other theories. It can process wallpaper, paper tube and other raw materials into fragments at one time, with less investment, low energy consumption, high productivity, good economic benefits, convenient use and maintenance. The crusher is mainly composed of a chip cutting device, a crushing device and a fan. The mill is equipped with a small particle size after cutting, and can be sent to the crushing device for further crushing without drying, and the powder fiber finished after crushing is sent to the aggregate site by the fan.
Product Parameters

Model	Blade thickness(mm)	Blade diameter(mm)	Crushing chamber size (mm)	Capacity(t/h)	Power(kw)	Overall size(m)	Weight(kg)
600	15-30	260	600*550	0.3-5	18.5*2	3*2*1.1	2850
800	15-40	300	800*600	0.5-6	22*2	3.3*2*2.42	4200
1000	15-40	350	1000*700	1-15	30*2	3.5*2*2.82	6500
1200	30-50	400	1200*800	1.5-20	37*2	3.8*2*2.82	7800
1400	30-60	450	1400*900	2-25	55*2	4.4*2*3	9600
1600	40-60	600	1600*1000	3-35	75*2	4.7*2*3.1	12560

Technical characteristics
1. Heavy moving blade,high crushing power,the blade is made of wear-resistant steel,strong wear resistance, long service life.
2. It is driven by decelerating motor, with strong power, low speed, large torque, low noise, time-saving and labor-saving.
3. The product belongs to the fully automated equipment, set up start, stop, reverse and overload automatic reverse control functions, the use of complete functions, convenient and fast.
4. The blade arrangement and bite mode are designed for metal, and the thickness of props and the number of claws can be changed according to different materials.
5. Easy to adjust, low maintenance cost, uniform discharge, long use time.
Detailed Photos
Other product
Packaging & Shipping
Customer visit
Company Profile
ZHITE Environmental Protection Technology Co., Ltd. Which located in the "International kite Capital",Weifang city,Shandong Province.With beautiful environment and convenient transportation,it's the domestic environmental protection equipment professional manufacturers.
With an area of more than 20,000 square meters,the company adopts modern enterprise management philosophy,seiko manufacturing,forge ahead. And the company has strong technical force,advanced technology,complete varieties,in strict accordance with ISO9001 standards,organization,design,production,sales and management.
The company is a comprehensive domestic enterprise with integrating scientific research and development,engineering design,production and installation and commissioning services.The main products are medical waste treatment equipment,diseased livestock and poultry harmless treatment equipment,household waste treatment equipment,kitchen waste treatment equipment,tail vegetable treatment equipment,sludge treatment equipment and all kinds of shredding equipment and other solid waste treatment products. Also can design and customize all kinds of efficient and practical equipment and production lines according to customer needs
