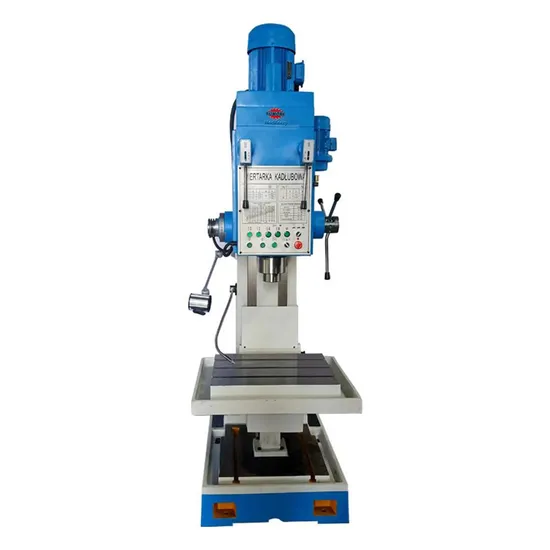

Sumore Sp5180b China Drilling Machine 80mm Bore Metal Column Drilling and Milling Machine Z5180b Vertical Drilling Machine

Product Description

Product Description
SP5180B Drill Press Vertical Drilling Machine 80mm Bench Drill Press Machine With Factory Price SUMORE
1. Z5180 vertical drilling machine, which can be used for drilling, reaming, countersinking, boring, tapping, etc. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes. 2. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters

Main technical parameters	SP5180B
Maximum borehole diameter mm	80
Maximum Feed Resistance N of Main Shaft	30000
Maximum spindle torque N.m	800
Main motor power kw	5.5
Conicity of main cone hole NO	6
Spindle speed r.p.m	40-570(9steps)
Feed per spindle revolution mm/rev	0.11-0.78(6steps)
Spindle stroke mm	250
Spindle box stroke mm	250
Distance from spindle centerline to pillar mm	375
Longitudinal and transverse travel mm of worktable	no
Vertical travel mm of worktable	300
Maximum distance from end face of spindle to worktable mm	850
Table size mm	650*550
Machine tool weight kg	2500
Outline dimension mm	1197*980*2797

As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
