Rotary Tiller Tractor Mounted Rotavator
| US$800.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
1GQN-200
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Color
Red
Warranty
1 Year
Blades Material
65mn Normal
Pto Shaft
Avaiable
Colour
Custom Made
Logo
Custom Made
OEM
Yes
Blade Shaft
Two Types
Transport Package
Iron Box
Specification
1GQN-200
Trademark
LEYUAN
Origin
Shandong China
HS Code
84329000
Production Capacity
5000set /Year
Product Description

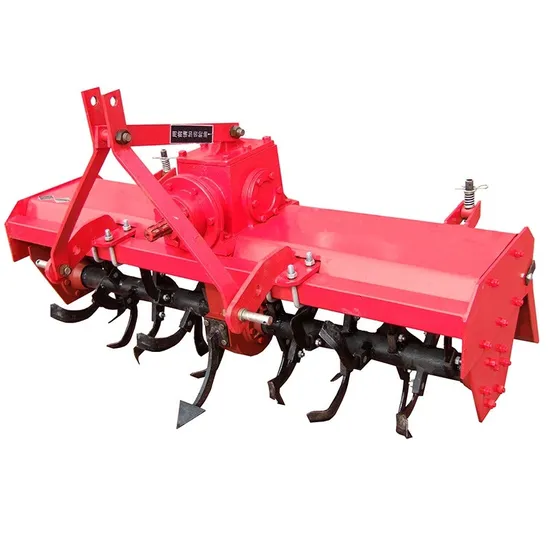

Product Description1GQN series of rotary tiller adopts middle gear transmission system, mounted with the tractor of 12-80HP. Tractor's wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc.
Product Parameters
| Modle | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | |
| 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | ||
| Matched power(hp) | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | |
| Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |
| Working depth(cm) | Dry land | 12-16 | 12-18 | ||||||||
| paddy field | 14-16 | 14~20 | |||||||||
| NO. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | |
| Type of blade | IT225 | IT245 | |||||||||
| Total weight(kg) | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | |
| 192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | ||
| Dimension (mm) | L | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 |
| W | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | |
| H | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | |
| Linkage | Standard three-point mounted | ||||||||||
Detailed Photos
Packaging & Shipping
