Taijia pile integrity tester (Pit) price Pile Dynamic Analyzer pile echo tester price integrity test machine

Product Description

Product Description

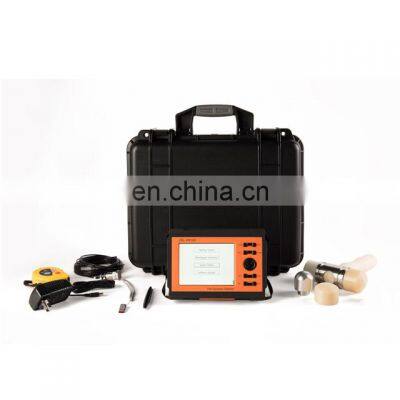

Product DescriptionZBL-P8100 Pile integrity testerP8100 Foundation Pile Dynamic Detector is used to assess the integrality of concrete pile and identify the extent and location of the pile detect by using the reflected wave method.It can be used for testing perfusion pile and hammer pile and also for testing the exposed top surface of constructions such pillars.The ZBL-P8100 is pile integrity tester provided with 2 channels of data acquisition and can acquire data from an accelerometer or an instrumented hammer or from two accelerometers.1.High fidelity system design, to ensure that the original waveform distortion2.True 24 bi A/D data acquisition, the rest waveform is more real, to avoid the noise and signal distortion caused by large floating point amplification3.1MHz high speed data acquisition, the minimum sampling time resolution of 1μs,can provide more useful information, more conducive to the discovery of shallow defects;4.Double channel design, allows use the special detection method5. A new processing method of wavelet analysis, can be more accurate in complex situations of pile integrity judgement6. Double injection molding, beautiful appearance, small volume, light weight;7. Waterproof casing, anti shock design, adapt to the harsh environment8.Semi transparent, high brightness, TFT color LCD screen, more clearly in the sunDetails ImagesModel ZBL-P8100 Low Strain PIle Integruty Tester Control modelAB Embedded platformData storage>=4GBOperation mode Key+tough screenSentinel magnify( time ) 1,2,5,10,20,50,100 adjustableMax length of sampling4096TriggrerSingle triggrerNoise voltage of system( mV)<=1Dynarnic range(dB)>=184Amplifier frequency range (Hz)10~10KTime value error4096Time resolving power(us)<=10%Gain error(dB)<=1%Work time(h)>8Number of channels2Interference between the channels<=1%Transducer/peobe sensitivity( Acceleration mode)( mv/g)>=100Frequency range of Probe(Acceleration mode)(Hz)0.5~9000PortDouble USBWi-fiYESPowerInternalBuilt-in battery External220VAC/DCOperational environmentTemperature (℃）-10~+50Humidity(RH)<90%ApplicationProduct packagingMain Unit*1 Unit Sensor*1 UnitHandheld Hammer*1 UnitCarrying case*1 UnitUser manual*1 UnitRelated ProductZBL-P8000 Wirless Pile Integrity Testing.By using the reflected wave method, the instrument is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing drilled piles and hammer piles. It can also be used for testing the exposed top surface of constructions such as pillars.ZBL-R630A Rebar scannerZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation,and distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detectorZBL-R800 is a multi-functional rebar detector equipment for both measure rebar direction , rebar size , the degree of reinforcement rust rate and testing the thickness of proective layers( concrete thickness measurement) in concrete construction using non destructive testing method.Company ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615541112235web:/.
