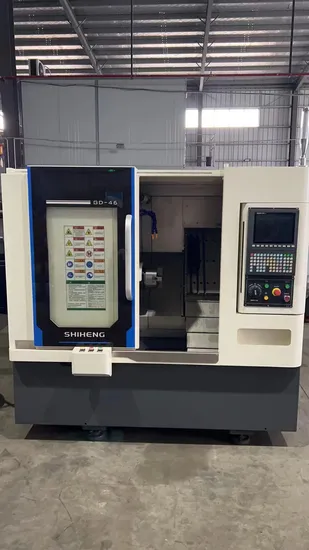

Xgd46 Slant Bed Roller Linear Guide Rail Heavy Duty CNC Lathe Machine

Xgd46 Slant Bed Roller Linear Guide Rail Heavy Duty CNC Lathe Machine

US$11,000.00-13,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XGD46
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
NC
Processing Precision
<=0.01
Performance Classification
Economical CNC Machine Tools
Certification
ISO 9001
Condition
New
Transport Package
Wooden Box
Origin
Taizhou

Product Description


SPECIFICATIONS Units XGD46
Maximum turning diameter over bed mm Φ360
Maximum turning diameter over turret mm Φ200
Max.machining length mm 300
Maximum stroke of X/Z mm 800/450
Spindle Maximum spindle speed r/min 6000
Dia of spindle bore mm Φ40
Height of rectangular tool shank section mm 20
Repeat positioning accuracy mm <0.005
Spindle motor kw 7.5kw
X/Z Fast movement speed X/Z(m/min) X:24//Z:22
Hydraulic pump motor kw 0.75
Cutting fluid pump motor kw 0.12
Power supply V 380v
Machine weight kg 2200
Machine Size mm 1900x1500x1900
