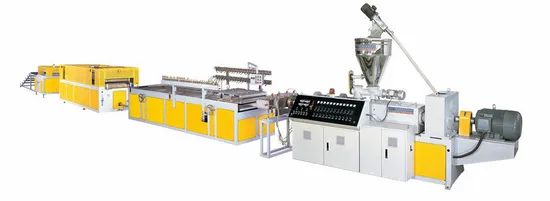

PVC Door & Window Profile Extrusion Plant / Plastic Profile Extrusion Line

Product Description

This extrusion line is special for PVC DOOR'S & WINDOW'S PROFILE or WPC PROFILE extrusion. The main machine is the Conical Twin-screw Extruder. The accessorial machines of this production line are Vacuum Forming Bath, Traction machine, Cutter and product Stacker. There are different kinds of accessorial machines special designed for different types of profile.
There are all types of conical twin-screw extruders with different capacity from 60kg/h to 700kg/h. There are alternative choices for extruder control system which are PLC control or button control.

Model	YF180	YF240	YF300	YF600	YF900	YF1200
Max. width of board(mm)	180	240	300	600	900	1200
Max. height of product(mm)	150	150	150	150	150	150
Traction force(KN)	2	2	2	30	40	50
Speed of traction(m/min)	0-5	0-5	0-5	0-3	0-2.5	0-2.5
Power of accessorial machines(kw)	35	35	35	30	40	45
Cooling water consume(m 3 /h)	6	6	6	9	12	15
Compression air(mpa)	0.6	0.6	0.6	0.6	0.6	0.6

Kebeln Plastic Machinery Co., Ltd is one of the leading manufacturers of plastic extrusion machines for pipes, profiles, sheets extrusion. It established in 2005. As one of the top China leading manufactures, the annual production of Kebeln is up to 1000 units. We supply various kinds of extrusion lines equipped with different capacity from 1KG to 1500KG of extruders with Chinese/English PLC automatic control system according to customers' requirement.
Kebeln is located in Shunde District, Foshan City, Guangdong Province. It covers an area of over 15000 square meters with over 10 million investment of fixed assets and the excellent equipments. Kebeln is committed to provide the first-class service for the customers from all over the world, and only the superior technology quality and the competitive price. The products from Kebeln are popular in the market. The excellent service of Kebeln obtain the good reputation in extrusion field. Kebeln has been approved by ISO9001: 2000 International Quality Certification.
