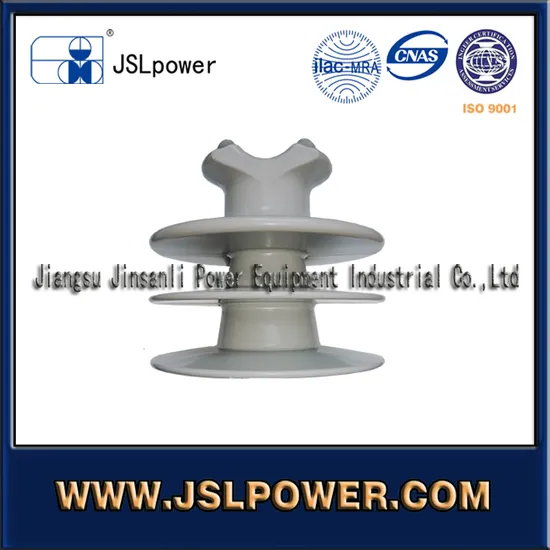

ANSI C29 Tie Top 35kv 1pin Hole F Neck Modified Polyethylene HDPE Insulator

Product Description

Specifications:
35kv hdpe pin insulator
1)Innovation and change
2)Factory's direct sale price
3)New material Characteristics:
1.Unbreakable and light weight
2.Easiest handing and transportation
3.Water repelling surface
4.Long service life
5.Non-toxic,non-standing and recyclable About the HDPE pin insulator:
HDPE pin insulator,
Also called:Modified polyethylene insulator or High-Density polyethylene insulator.
It's has good heat resistance and cold resistance,good chemical stability,high rigidity and toughness, good mechanical strength,very good electrical performance,Especially high insulation dielectric strength;Can Substitute porcelain insulator & Can be recycled.It's a new material for transmission line.Mainly applied in electrical syetem of 15kv,25kv and 35kv.

ANSI C29 Tie Top 35kv 1pin Hole F Neck Modified polyethylene HDPE Insulator

Main Dimensions and Standard Particulars
Fig		1	2	3	4
Catalog		JHG-IP-15F	JHG-IP-25F1	JHG-IP-25-F2	JHG-IP-35F
Class ANSI		ANSI 55-4	ANSI 55-5	ANSI 55-5	ANSI 55-6
Main Dimensions(mm)	A	129.5	150	140	181
	B	140	190	190	191
	C	88	99	100	140
	D	68	68	74	85
	E	25.4	25.4	25.4	25.4
	F	16	20	20	19
Nominal Voltage(kv)		15	25	25	35
Creepage Distance(mm)		370	390	370	508
Minimun Flashover Voltage	Dry/kv	75	89	85	110
	Pos/kv	110	141	130	160
Low-Ferequency Puncture Voltage Average Oil immersion/KV		160	185	180	200
Dry Arcing Distance(mm)		160	183	200	254
Cantilever Failing Load(KN)		13	13	13	13
Weight(kg)		0.6	0.85	0.91	1.1
Qty(pcs)/Ctn		18	9	9	9
Qty(pcs)/20FT		7560	3780	3780	3150

WE ARE NUMBER ONE IN CHINA! OUR HDPE INSULATOR INSTALLED IN THE LAND OF CHINA IN 2015!
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, processing and sale of rubber clamp spacer,hdpe insulator/cable spacer.Since its establishment, it has developed various rubber and plastic auxiliary products applicable to electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer and HDPE(modified polyethylene) insulators. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer(hdpe) technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises.
We are manufacturer , welcome to visit, if you have any requriements for HDPE pin insulator design or size, please contact us,If you want to know about the other electrical insulators please Copy: http://jslpower.en.made-in-china.com/ and come to visit our company website.
