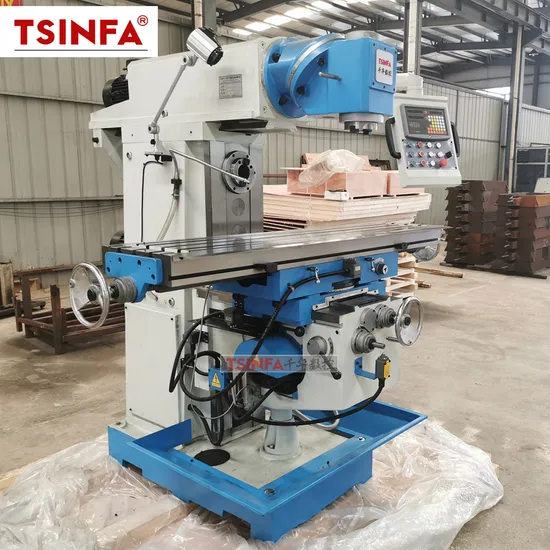

Universal Milling Machine for Metal Wn736A High Quality Factory Outlet

Product Description

Product Description
The main performance characteristics:
The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
-Milling head can be rotated 360 degrees -Worktable 45 degree rotation (optional for some models)
-XY axis automatic feed -Worktable electric lift
Product Parameters

Specification	Unit	WN736	WN736A	WN736C	WN736D	WN736B ( Servo Motor )
Table size	mm	1500*360	1600*360	1600*320	2000*400	1600*360
Numbers,width distance between T - slot	mm	3*18*80	3*18*70	3*18*70	3*18*90	3*18*80
Table travel (X/Y/Z)	mm	900*320*450	900*300*400	800*300*400	1180*300*365	1200*300*400
Travel of Arm	mm	600	600	600	600	600
Swivel angle of the vertical milling head	degree	±360°	±360°	±360°	±360°	±360°
Max. rotary angle of table	degree	/	±45°	±45°	/	±45°
Distance from horizontal spindle to ram bottom	mm	170	200	200	200	210
Spindle taper	taper	ISO50(H) ISO40(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)	ISO50(H) ISO50(V)
Level spindle speed grade	steps	12	12	18	18	12
Level spindle speed range	rpm	60-1800	60-1800	30-1500	30-1500	60-1800
Milling Head spindle speed grade	steps	11	12	12	12	12
Milling head spindle speed range	rpm	35-1600	60-1700	60-1700	60-1700	60-1700
Grade of the work-table feeds	steps	8	6	18	18	6
Range of feed speeds	mm/min	22-555	460/360/90	X: 23.5-1180, Y:23.5-1180, Z:8-394	X: 23.5-1180, Y:23.5-1180, Z:8-394	Stepless 0.1-700
Speed of rapid travels	mm/min	555	X:1360, Y:1140, Z:300	X:2300, Y:2300, Z:770	X:2300, Y:2300, Z:770	2000/700
Main motor power	kw	4(H) 4(V)	4(H) 4(V)	7.5(H) 4(V)	11(H) 4(V)	5(H) 4(V)
Feed motor	kw	0.75	1.5	1.5	3	1.5
Coolant pump	w	40	40	125	125	40
Gross weight/Net weight	kg	2300/2100	2800/2400	3500/3300	4500/4250	2800/2400
Overall dimensions(L W H)	mm	1900X1600X2050	2000X1900X2050	2050X2050X2050	2400X2000X2150	2000X1900X2050
Packing Size	mm	2000X1700X2250	2100X2000X2250	2250X2250X2250	2500X2260X2250	2100X2000X2250

Detailed Photos
