US$960.00-2,380.00
|
1 Piece
(MOQ)
|
Basic Info.
Battery
24V 6ah*2PCS Lithium Battery
Motor
24V 180W Brushless Motor
Using Ambient
Ndoor and Outdoor
Folded Size (L * W * H)
610 * 260 * 770mm
Unfolded Size (L * W * H)
870 * 610 * 920mm
Weight
26.5kg Without Battery
Specification
CE, FDA, ISO13485, ISO9001
Origin
Nanjing, Jiangsu, China
Production Capacity
4000 Sets/Month
Packaging & Delivery
Package Size
59.00cm * 54.00cm * 85.00cm
Package Gross Weight
35.000kg
Product Description

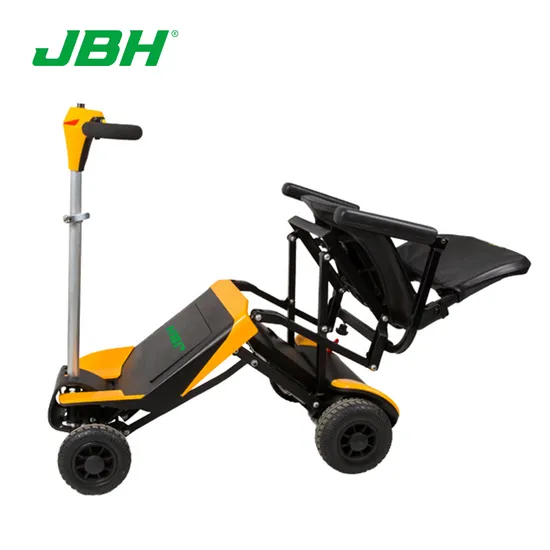

Remote Controller Electric Folding Portable Scooter Automatic portable Folding electric scooter Advantages:
1.Mini type folding electric scooter, folding volume only 0.22cbm.
2.One-key automatic fold, no need handle fold, easy for elder or disable people.
3.PG controller, quality ensure.
4.Electromagnetic brakes, scooter will be stop instantly when hand off.
5.The folding electric scooter can be put into trunk, easy to transport.
Automatic portable Folding electric scooter detail parameters:
Description | Folding Electric Mobility Scooter |
Model: | FDB01L |
Frame Material: | Aluminium frame |
Unfold size L×W×H | 1050×550×870mm |
Fold size L×W×H | 480×550×780mm |
Front tires | 7"x1.77"×2 PCS PU solid tires |
Back tires | 8"x2.75"×2 PCS PU solid tires |
Speed | 0-6Km/H(adjustable) |
Driving range | 20Km |
Driving time | 4H |
Obstruction ability | 40mm |
Driving way | Back rears driving |
Brake way | Automatic electromagnetic brake DC24V 10.8W 3.0Nm(brake distance adjustable) |
Seat depth | 380mm |
Seat width | 430mm |
Seat height | 580mm |
Max load | 120kg |
Max climbing grade | 8° |
Turning Radius | ≤1.2m |
controller | PG DC 24V 45A |
Moter | 180W DC24V |
charger | DC24V/2A lithium battery charger AC110-250V |
battery | 24V /6AH*2PCS lithium battery |
colour | red, blue, silver, yellow,white |
Package | 7 layers carton with protect foams |
Carton size L×W×H | 590mm×540mm×840mm |
Total weight | Net weight:26.5kg (without battery),29kg (with 2 batteries) |
Gross weight:35kg |
Quantity in container | 20"GP-108pcs, 40"GP-228pcs, 40"HQ-228pcs |
After-sale Service:
1. One year warranty under normal use.
2. If the quality problem, please contact us within 24 hours after received of the goods, we'll solve it immediately.
3. Under special circumstances, we'll re-send the spare parts or new products to the customers.
4. Keep the best service in the business, we'll get more cooperation with you.
We care from every detail and keep close contact with customers for the process. Our goal is to make customers happy and proud of us!
Company information:
JBH Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
Cerificates: Our products have approved ISO9001:2000, ISO13485:2012, CE, FDA,SGS certificates.
