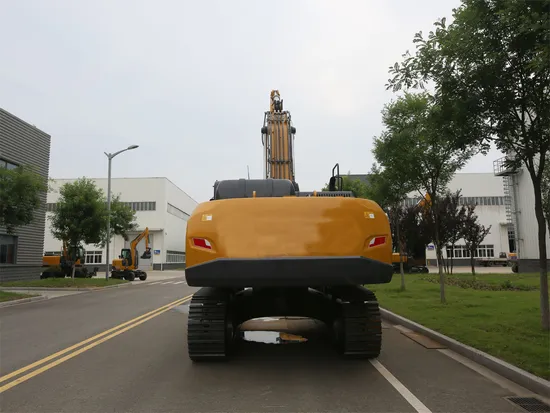

Excavator Xe370d Chinese New 35 Ton Big Crawler Excavator with 1.8 Cbm Bucket

Product Description

XE370D hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, mines, tunnels and other harsh construction environment.

It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of "high efficiency, excellent energy saving and outstanding environmental protection", and the ultimate target of "powerful functions, wide scope of applications and creation of more value for customers".
1.The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2.The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3.The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models. 4.The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Specification

Description				Unit	XE370D
Operating weight				kg	36800
Bucket capacity				m³	1.4~1.8
Engine		Model		Engine	ISUZU GH-6HK1XKSC-03
		Style	Direct injection	---	√
			Four strokes	---	√
			Water cooling	---	√
			Turbo-charging	---	√
			Air to air intercooler	---	√
		No. of cylinders		---	6
		Output power		kW/ r/min	212/2000
		torque/speed		N.m	1080/1500
		Displacement		L	7.79
Main performance		Travel speed(H/L)		km/h	5.4/3.2
		Gradeability		%	70
		Rotary speed		r/min	9.7
		Ground pressure		kPa	66.7
		Bucket digging force		kN	263
		Arm digging force		kN	188
Hydraulic system		Main pump		--	K5V160DTH
		Rated flow of main pump		L/min	2×304
		Main safety valve pressure		MPa	34.3/37
		Pressure of pilot system		MPa	3.9
Oil Capacity		Fuel tank capacity		L	660
		Hydraulic tank capacity		L	350
		Engine oil capacity		L	30
Appearance size		Overall length		mm	11388
		Overall width		mm	3190
		Overall height		mm	3530
		Width of platform		mm	3050
		Length of crawler		mm	5035
		Overall width of chassis		mm	3190/600 Crawer,3290/700 Crawer,3390/800 Crawer
		Width of crawler		mm	600
		Wheel base of crawler		mm	4040
		Crawler gauge		mm	2590
		Clearance under counterweight		mm	1197
		Min. ground clearance		mm	500
		Min. rear-end swing radius		mm	3700
Working scope		Max. digging height		mm	10445
		Max. dumping height		mm	7287
		Max. digging depth		mm	7423
		Max. digging depth at the range of level 8 feet		mm	7266
		Max. vertical wall digging depth		mm	6776
		Max. digging reach		mm	11114
		Min. swing radius		mm	4369
