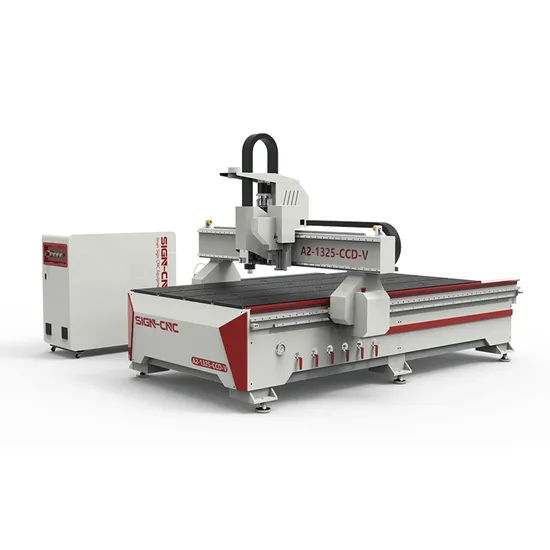

CCD Visual Orientation Wood Router 1325 Desktop CNC Router Machine
| US$4,500.00-6,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
A2-1325-CCD-V
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1300*2500*200mm
Spindle
6.0kw Spindle +Vibrating Knife
Guide Rails
25mm Square Guide Rails
Command Code
G Code
Control System
Xdw Control System with Computer
Reducer
Japan Shimpo Planetary Reducer
Z- Axis Height
200mm
Oil Lubrication System
Manual
Motor
AC Servo Motor and Driver
CCD
CCD Camera with Software
Transport Package
Standard Export Wooden Box
Specification
13 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month
Product Description
Ccd Visual Orientation Wood Router 1325 Desktop Cnc Router MachineSpecification
| Model | A2-1325-CCD-V |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 150mm |
| Table Surface | Vacuum table |
| X, Y Structure | Rack and Pinion Drive, TBI Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 35000mm/min |
| Max. Working Speed | 20000mm/min |
| Spindle Power | 6.0KW spindle +vibrating knife |
| Spindle speed | 0-18000RPM |
| Drive Motors | Servo motor and driver |
| Working Voltage: | AC220V/50/60Hz |
| Command Language | G code |
| Control System | XDW control system with computer |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Reducer | Japan Shimpo planetary reducer |
| CCD | CCD camera with software |
| Relative Humidity | 30% - 75% |
| Optional Parts | Rotary system, Panasonic Servo motors |
Company Profile
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
