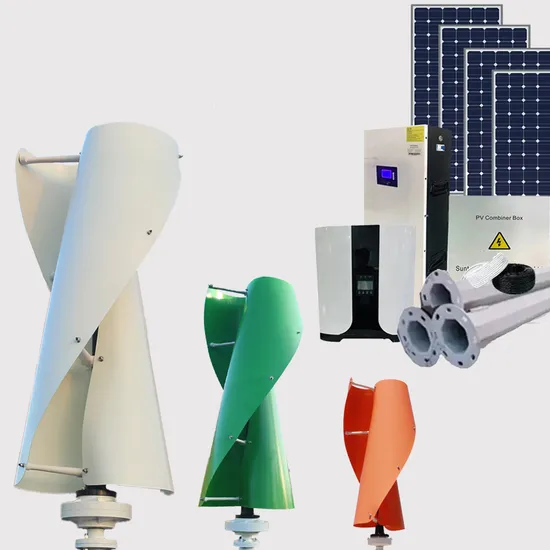

1kw 2kw 3kw Helical Type Vertical Axis Wind Turbine for Marine

Product Description

1kw 2kw 3kw Helical Type Vertical Axial Wind Turbine For Land And Marine
Product Description Higher efficiency and power density than other types of vertical-axis wind turbines.
Spiral type vertical wind turbine is a kind of Darrieus wind turbine, which has blades that are curved in a spiral shape.
This design reduces the drag and torque fluctuations of the blades, and increases the lift and power coefficient.
Spiral type vertical wind turbine can also operate at low wind speeds and high tip speed ratios, which makes it suitable for
urban and small-scale applications
Specification

Model	RX-SV600	RX-SV1000			RX-SV1500	RX-SV2000			RX-SV2500
Rated Power	600W	1KW			1500W	2000W			2500W
Max Power	650W	1100W			1600W	2100W			2600W
Blades Length	1.05M	1.3M			1.5M	1.5M			1.7M
Wheel Diameter	0.52M	0.52M			0.6M	0.67M			0.6M
Rated Voltage	12V~24V	12V~48V			12V~48V	12V~96V			48V~220V
Start Up Speed	1.2m/s	1.5m/s			2.0m/s	2.0m/s			2.0m/s
Rated Speed	12m/s	12m/s			12m/s	12m/s			12m/s
Cut-in Speed	3.5m/s	4.0m/s			4.0m/s	4.0m/s			4.0m/s
Survival Speed	40m/s	45m/s			45m/s	45m/s			45m/s
Blades Quantity	10	2			2	2			2
Blades Material	Fiber glass
Generator Type	Coreless Disc Type Maglev Levitation Permanent Magnet Generator
Working Temperature	-40ºC~+40ºC
Protection Level	IP54
Working environment humidness	≤90%
Altitude	≤4500m
Install Height	6~12m
Overload Protection	Electromagnetic Brake

Detailed Photos
Packing photos

Wiring Diagram
Our Factory
FAQ 1. What kind of region can be installed wind turbine?
Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be
more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s
effectively average wind power should be more than 100W/m2.
It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly
in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller
in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.
2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?
At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to
the load and be charged timely by wind turbine is the amount of the actual needs power.
Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4
hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so
the actual power which can be used from battery is 280WH.
If there are:
1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH
2) TV 35W x 1 set, working 3 hours one day, consumption 105WH
3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH
Above total consumption is 285WH per day. If you
only design to install 100W wind turbine generator, the consumption total power
will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will
make the battery serious loss of electricity and damaged, and it will cut down your battery service life.
It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the
wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time
different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in
poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar
panels at the same time.
3. How to select the correct battery capacity to get power from wind turbine generator?
Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.
1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)
2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)
3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
5) 1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)
