Euro Wood Pallet Making Machine Production Line for Pallet Making Machine

Product Description

Product Description

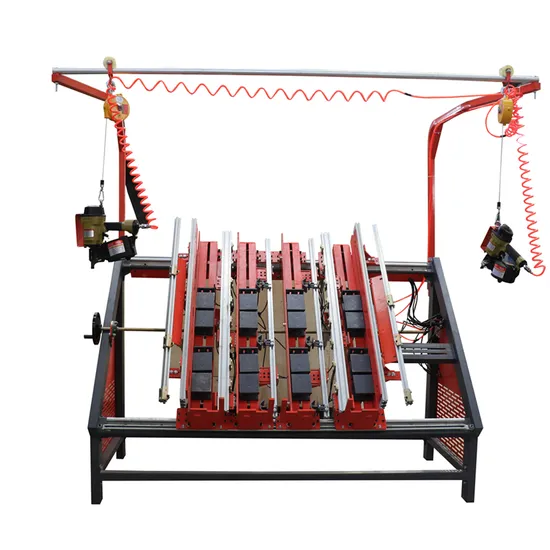

Pneumatic Nailing Table For Wooden Palle

Model	PT-1600
Wood pallet length	600-1300mm
Wood pallet width	800-1600mm
Operational mode	Pneumatic operation
Air pressure	0.8MPA
Production effciency	30-40pcs /h
Number of beams	3p (customized)
Number of nail guns	2P (CN70,CN55)American Stanley staple gun
Weight	650kg
Size	2400*980*1900mm

Our Advantages
A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Pneumatico PT-1700 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1700 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique
Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table
Company Profile
1 more than 30 years manufacturing experience
2 exported more than 70 countries all over the world
3 24h-after service at any time
4 profitable offer
5 14 years of experience in foreign trade exports,rich machine production experience
6 Widely recommended by local customers
Related products
US pneumatic nailing machine

Model	PT-1600
Wood pallet length	600-1300mm
Wood pallet width	800-1600mm
Operational mode	Pneumatic operation
Air pressure	0.8MPA
Production effciency	30-40pcs /h
Number of beams	3p (customized)
Number of nail guns	2P (CN70,CN55)American Stanley staple gun
Weight	650kg
Size	2400*980*1900mm

Automatic Wood Pallet Nailing Machine

Model	AWPN-1300
Wood pallet length	600-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	3P OR 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410

Sem-automatic Horizontal Nailing Machine

Max Nailing Pallet Length	1300MM
Max Nailing Pallet Width	1300MM
Capacity	30 Pallets/Hour
Pneumatic Gun Quantity	3
Power	Pneumatic
