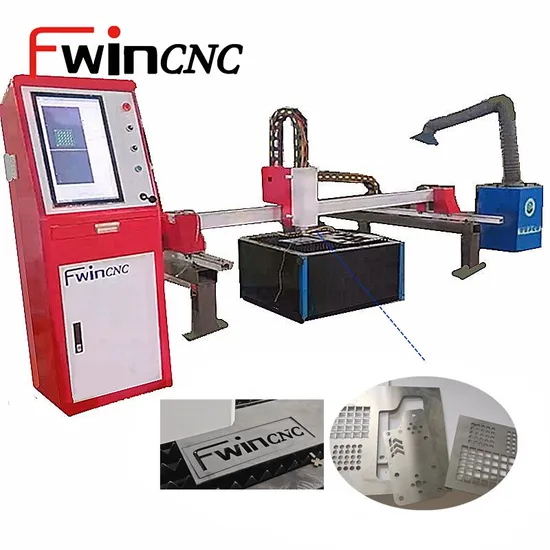

3kw Max Metal Plate Laser Cutting Machine for Stainless Carbon Steel with Small Packing Size

Product Description

Introducing our new portable laser cutting machine!
With small packing size and lower cost, our portable fiber laser cutter is your best option!
Specification Chart
Features for 1500W 2000w 3000w Portable Fiber Laser Cutting Machines
1.Low cost,laser power consumption only 0.5-1.5kw per hour. 2.China best quality laser source,high performance,stability and service lifespan over 100,000hours,free of maintenance.High speed ,high efficiency,thin plate cutting can be over 10 meters per minute. 3.Automatic height sensor on laser head for uneven pieces. 4.Imported ball screw and linear guide rail driving system. 5.Easy and efficient CNC software for fast programming.

No.	machine model:ALLWIN-1530-3000W
1	max working area		1500mmx3000mm
2	Packing dimension		2000mmx3000mmx1700mm
3	Laser source		3000W 2000W 1500W MAX LASER SOURCE
4	laser head		Swiss RAYTOOLS with auto focus
5	software		Professional FSCUT2000 with Cypcut software
6	motor and driver		invance servo motor driver
7	Reducer		SHIMPO reducer
8	Water chiller		S&A brand with Dual temperature,dual control
9	Rack and pinion		Taiwan brand T-WIN rack and pinion
10	Guild rails		HIWIN GUILDER RAIL
11	Exhaust fan		Blower Exhaust fan
13	Air compressor		YES
14	voltage stabilizer		YES
15	Accessories included		1 SET RAYCUS FIBER LASER SOURCE 2000W
			1 SET RAYTOOLS LASER HEAD(AUTOMATIC FOCUS)
			1 SET WATER CHILLER
			CYPCUT SOFTWARE
			INDUSTRIAL COMPUTER
			FAN
			LASER PROTECTION GLASSES
			FIBER LASER CUTTING BED

ATTACHED RAYTOOLS LASER TORCH:
High-quality and accurate cuts,
Auto-focus capabilities,
Height sensing technology,
Collision protection
ATTACHED HANLI WATER CHILLER :
Maintain precise and stable temperatures
Space-saving
Low Maintenance Requirements

ATTACHED MAX LASER SOURCE
Good beam quality
Small and sturdy,
Built-in cooling fan
...
X-AXIS PULLY AND RACK
Smooth Operation
Compact Design
High Precision
CNC OPERATION DISPLAY SCREEN
Real-time monitoring, precise control, error detection, job management, integration with CAD/CAM software...
Metal cutting samples

With cutting error less than 0.56mm
Carbon steel 1.5mm cutting effect..using 1500w power
Carbon steel 6mm cutting effect..using 3000w power

Other Laser Cutting Machines Recommeded

Warranty for the machine
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time 2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team. 3. Free training course at our plant 4. We will provide the machine consuming parts with factory price when you need replacement. 5. 12 hours online service each day, free technical support. Packaging & Shipping
Package and delivery the fiber laser cutting machine
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
