Sea Transportation Laser Cutting Machine for Pipes with Profiles and Special-Shaped Tubes

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of High Speed Tube Laser Cutting Machine:

High Tech Enterprise

HSG Laser, dated back to 2006, as a hi-tech enterprise focusing on R&D, production and sales of laser
equipment, is dedicated to serve global customers with metal forming solutions. HSG Laser has applied for
366 patents in total.

Serve 100+ Countries and Regions

HSG Laser has built 4 standardized manufacturing plants in China, 13 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 200+ R&D personnel
and can produce 8000 sets each year by right of 960000m2 production area.

Professional Research Department Team

Our R&D team has developed 3D fifive-axis bevel cutting, P40 (40000W) autofocus cutting head,double digital
chucks, Alpha T and HSG-X9000 bus system.

Large Variety in Fiber Laser Machines

HSG Laser can serve global users with 30+ kinds of machines , including sheet metal laser cutting machine,
sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine and
automation equipment.

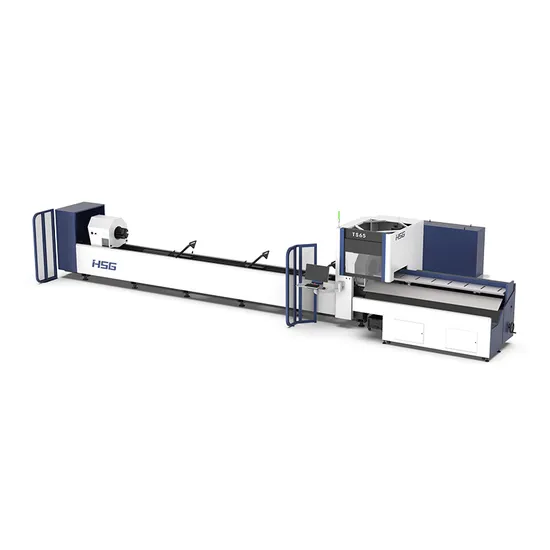

High Speed Tube Fiber Laser Cutting Machine 3000-6000W
Product Description
< Double Digital Chucks >
The chucks can identify different tubes and give alarm if abnormal. Front chuck is outfitted with ventilating system
to prevent smoke dust entry. Pressure monitor installed on rear chuck shows
clamping pressure that allows to be adjusted by hands.

< Cut Conventional Tubes, Profiles and Special-shaped Tubes >
TS can not only cut conventional tubes like round, square and rectangular tubes, and profiles like channel,
angle and H-shaped steels, but also cut special-shaped tubes easily like triangular, concave, L and C-shaped tubes, etc.
< Space Leapfrog, Flying Cutting >
The technology helps to minimize the moving path of cutting head by omitting repeated lift and fall,
therefore, cutting speed is improved beyond doubt.
Our Advantages
< HSG-X Bus CNC System >
* Bus refers to data transmission mode via on-site bus control system.


< Labor-saving Configurations >

Optional Automatic Loading Devices
Users can load standard-sized tube and enjoy batch production with little manual intervention. Round, square, rectangular tube, as well as angle, channel and H-shaped steel are loaded easily.
Unloading Device
Turning plates as unloading device can protect tube surface from scratch.

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	TS65
Power	3000-6000W
X/Y-axis Positioning Accuracy	±0.03mm/m
Cutting Capacity of Round Tube	12-273mm
Cutting Capacity of Square Tube	12*12-200*200mm
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. * The price of machine with different power is also different. Please contact the customer service staff for consultation.* All testing results and experimental data shall be subject to real machine.

Sample Display

Office Area
Visit & Exhibition

Certifications

Test & Packing

QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE

Δ One-year Warranty
All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.
Δ Exclusions
Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the
warranty.
