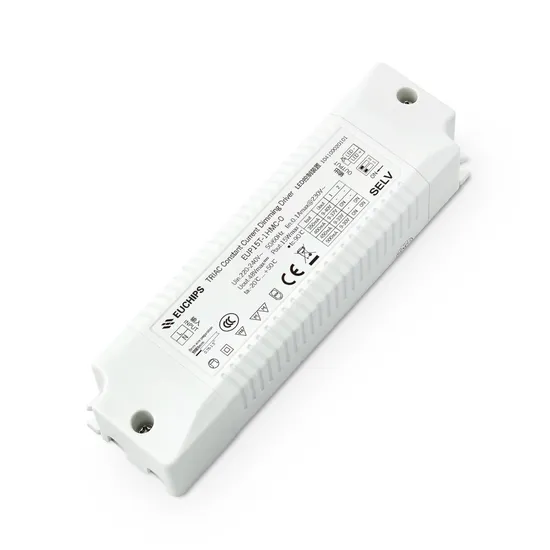

Euchips 15W Phase-Cut Constant Current Dimmable LED Driver for LED Lighting
| US$5.50-17.80 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
EUP15T-1HMC-0
Circuit Structure
Conventional Step-down Transformer
Certification
TUV, CE, RoHS, CCC, CE, RoHS, CCC, EMC
Modulation System
PWM
In-Out
Booster Type
Power Supply Voltage
AC85-265
Brand
Euchips Eudimming
Remote Control
Without Remote Control
Load Type
Direct
Lighting Variation
Sectional
Switch Device
Active
Application
Hotel, Home Lighting
Power Source
AC
Control Mode
PWM Dimmer
Type
Consant Current
IP Rate
IP20
Frequency
50/60Hz
Input Voltage
220VAC-240VAC
Power Factor
0.73@230VAC, Full Load
Warranty Condition
5 Years
Transport Package
Carton Packaging
Specification
150 *43*29 mm
Trademark
EUCHIPS
Origin
Suzhou, China
HS Code
8504401400
Production Capacity
50000 Per Year
Product Description
Product Description 15W 350/400/450/500mA*1ch Phase-cut Constant Current LED Dimming Driver EUP15T-1HMC-0Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
| Model | EUP15T-1HMC-0 | ||
| Input | Efficiency | 77%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.1Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 350mA/9-40VDC/14W400mA/9-37VDC/14.8W450mA/9-33VDC/14.85W 500mA/9-30VDC/15W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20ºC~50ºC | |
| Storage Temp.; Humidity | -40ºC~85ºC, 20-90%RH | ||
| Tc | 90ºC | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75ºC | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
FAQ A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Lead time?
Existing items: Within 1 day after payment received.
New items:About 4-6 weeks after payment received.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging
