Computer Control FRP Tank Production Line GRP Tank Winding Machine

Product Description

Introduction of Tank Winding Equipment
Product Description
Brief Introduction of FRP Tank Filament Winding Machine

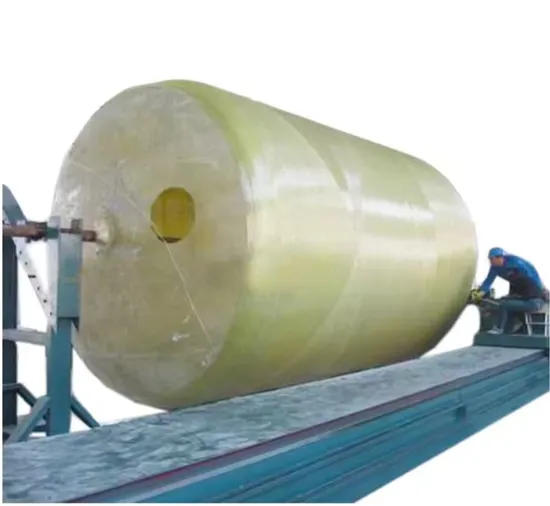

The whole set of filament winding machine is mainly used for fiberglass tanks making, such as grp horizontal tanks, grp vertical tanks, frp fuel tanks, ect. The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily; after the parameters inputted into the computer, it can be finished the relative design of winding linearity automatically. The combined movements of the main axle and the carriage controlled by the computer, conforms the winding rules, the technical parameters and its inner quality have reached advanced level in China. FW-4000III computer control filament winding machine is our bestseller and the high-end product in our winding tank line!
Input parameters, the computer can automatically complete the winding, easy operation, small error, and its large diameter range, suitable for making storage tanks of various sizes! Ideal for new plants, plant expansions.
If you are interested in frp storage tank production line, kindly tell me the model number, the size and quantity of mold, and I will send you our catalogue and quotation, thank you!
1. FW-4000 computer control filament winding machine

Model number	Control	Maxi diameter (mm)	Maxi length (mm)	Rang of idameter (mm)	Total power (kw)	Maxi width of roving sheet (mm)	Productivity (kg/h)
FW-4000III	computer	4000	12000	600~4000	10	150	500
JFW-1500	semi-automatic	1500	6000	25~1500	5.5	150	450
JFW-2500	semi-automatic	2500	12000	25~2500	7.5	150	500

1. The range of diameter can be wound: DN600~ DN4000mm
2. The maxi length: 12000mm
3. The winding angle: 45°<α<90°
4. The total power: 10kw
5. The tolerance of positioning: <1mm
6. The maxi width of roving sheet: 150mm
7. The productivity: 500kg/h
2. Large-scale site winding machine
The specific model is as follows:

Moder number	Features	Type of tank	Rang of diameter (mm)
FW-10000	computer control	Horizontal	4000~10000
FW-15000	computer control	Horizontal	4000~15000
VFW-25000	computer control	Vertical	4000~25000

Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client, then the large tank can be finished.
I.FW-15000 Computer Control Vertical Site Winding Machine
The major properties of the equipment are below.
2.1 The maxi diameter can be wound: 15000mm
2.2 The maxi length can be wound: 12000mm
2.3 The range of diameter: DN4000~DN15000mm
2.4 The maxi torque: 68350N·m
2.5 The total power: 18.6kw
2.6 The maxi width of roving sheet: 1680mm
2.7 The productivity: 550kg/h
II. FW-25000 Computer Control Vertical Site Winding Machine
1. General
VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.
2. Parameters of the Winding Machine
Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*
*Note:The productivity and the quantity of strand is based upon the quality of roving
