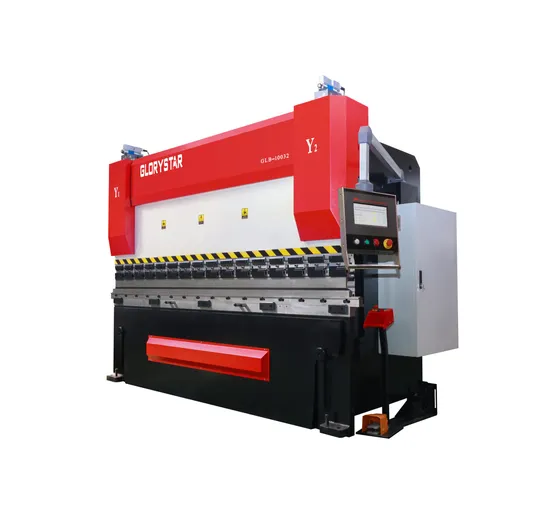

Ce Standard CNC Press Brake 2000kn with 6+1 Axes

Product Description

Technical Data

Model no.	Nominal pressure	Distance between uprights	Length of table	Thorat depth	RAM sroke	Speed (time/min )	Max.RAM Open Height	Main motor	Net. Weight	Overal dimension
GLB-4015	400	1500	1140	300	160	>=10	400	4	3800	1700*1600*2350
GLB-8025	800	2500	2010	350	160	>=8	400	7.5	7500	2700*1650*2360
GLB-10032	1000	3200	2700	350	200	>=8	400	7.5	9300	3500*1650*2360
GLB-16032	1600	3200	2700	350	200	>=9	400	15	12000	3500*1650*2360
GLB-16042	1600	4000	3500	350	200	>=9	400	15	14000	4200*1650*2630
GLB-20032	2000	3200	2700	400	240	>=9.5	450	15	13000	3500*1650*2360
GLB-20040	2000	4000	3500	400	240	>=9.5	450	15	15000	4200*1900*2750
GLB-25032	2500	3200	2700	400	240	>=9.5	520	18.5	15000	3500*1900*2750
GLB-25040	2500	4000	3500	400	240	>=9.5	520	18.5	17000	4200*1900*2750

Product features

Machine frame is heaviest welded construction,stess released by annealing process,this is has minimized deflection of the frame
Y Axis full closed loop control
Proportional hydraulic compensation system to prevent deformation
German HELDENHAIN linear encoder
Taiwan HIWIN ball screw and linear guide rail,high performance AC Japanese Yaskawa AC servo motors and drives
Rich functions CYBELEC/DELEM professional control system
Eletro-hydraulic servo synchronization module and pressure module
+/-0.01mm repeat accuracies
+/-0.01mm parallelism accuracies

Applicable Industry
Elevator industry,stainless steel industry,copper,aluminum,decoration industry,etc.

Applicable materials

Stainless steel plate,iron plate,copper plate,aluminum plate and so on.
Optical Accessories

Premium backgauge-R,Z1-Z2,X Axe as options supreme backgauge 6 axes X1/X2,R1/R2,Z1/Z2
Light curtains or laser safe
Laser check bend angle measuring device
Robotic bending
