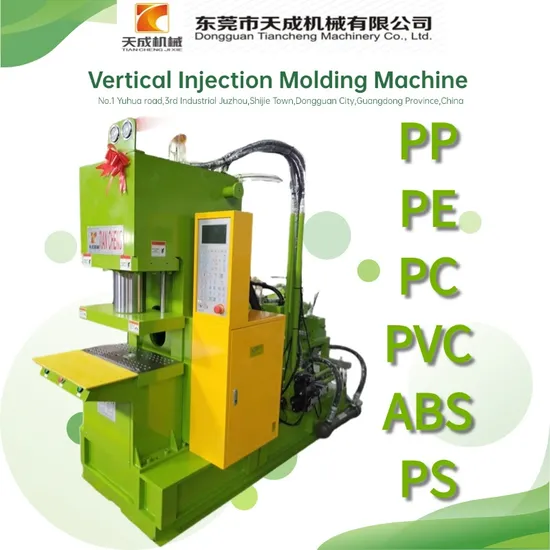

Type C Injection Machine 15t 25t 35t 45t Mini Injection Machine Molding
| US$8,600.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TC-400
Type
Tube Head Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter
28--32mm
Mininmum Mold Thickness
160/220mm
Clamping Force
45 Tons
Nozzle Retraction Stroke
220mm
Machine Weight
1500kg
Machine Specification
1.6*1.05*2.45
Opening Force
7 Ton
Electric Power
5.5kw
Transport Package
Plywood Case Packing
Specification
45T
Trademark
TianCheng
Origin
Dongguan Guangdong
HS Code
8477209000
Production Capacity
50000sets/Year
Packaging & Delivery
Package Size
160.00cm * 105.00cm * 245.00cm
Package Gross Weight
1500.000kg
Product Description
Welcome to Dongguan Tiancheng Machinery Co., LtdProduct Description
Our Services
1. 24 hours services, the answers to any questions will be replied sooner.
2.Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.Materials suppliers offered ,the contact ways to different kinds of the materials and requirements of your products can be supported here, you can contact them by yourself .
4. After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5.The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6.12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
Product Parameters
| Brand Name | TianCheng | Style | VERTICAL | |
| Condition | New | Style | TC-400-P | |
| Screw Diameter (MM) | 28--32 | Model NO. | 140 | |
| Maximum injection Pressure (Kg/cm2) | 1447-1108 | Max.Hydraulic Pressure(Kg/cm3) | 45 | |
| Theoretical Shot Volume (Cm3) | 73-96 | Pump Output (L/min) | 138 | |
| Maximum Shot Weight (G/oz) | 65/2.2--85/3.0 | Oil Tank Capacity (L) | 600-800 | |
| Injection Rate (Cm3/sec) | 58-76 | Cooling Water Consumption(L/H) | 5.5 | |
| Screw Speed (R/Min) | 0--180 | Electric Power (KW) | 2.4 | |
| Screw Rate (MM) | 120 | Total capacitance (KW) | 7.9 | |
| Nozzle Retraction Stroke (MM) | 220 | Total Wattage (KW) | 1.6*1.05*2.45 | |
| Clamping Force (Ton) | 45 | Machine Specification(M) | 1500 | |
| Opening Force (Ton) | 7 | Weight of Machine (KG) | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP | |
| Platen Size (MM) | 600*430 | Plastic Processed | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support | |
| Distance Between Tie-Bere (MM) | 450*250 | After-sales Service Provided | Video technical support, Online support, Spare parts, Field maintenance and repair service | |
| minimum Mold Thickness (MM) | 160/220 | After Warranty Service | 1 year | |
| Opening Stroke (MM) | 200 | Warranty | Manufacturing Plant, Construction works , Energy & Mining, Other | |
| Max-Distance opening mold (MM) | 360/420 | Applicable Industries | ||
| Max.Mold Size | 400*350 | |||
| Ejector Force (Ton) | 1.3 | |||
| Ejector Stoke (MM) | 35 |
With our customization options, we can tailor the machine to your specific requirements. To get started, please provide us with the following information:
1.The size of the mold
2.The product pictures
3.The product Drawing/Specifications
4.How many PCS of products are made in one mold
5.How many gram per product
6.The material to be used for the products
Packaging & Shipping
FAQ
| FAQ | |
| Q1 | Do you have reference project? |
| A1 | We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Contact our sales people you can get video of our reference running machine |
| Q2 | Do you provide customized service |
| A2 | We can design the machines according your requirements(material ,power,filling type,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. |
| Q3 | What's your guarantee or the warranty of the quality if we buy your machines? |
| A3 | We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
| Q4 | How long time for installation? |
| A4 | According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days. |
