1000L Stainless Steel Vacuum Electric Steam Heating and Cooling Reactor PU Glue Silicone Oil Paint Dispersion

Product Description

Detailed Photos

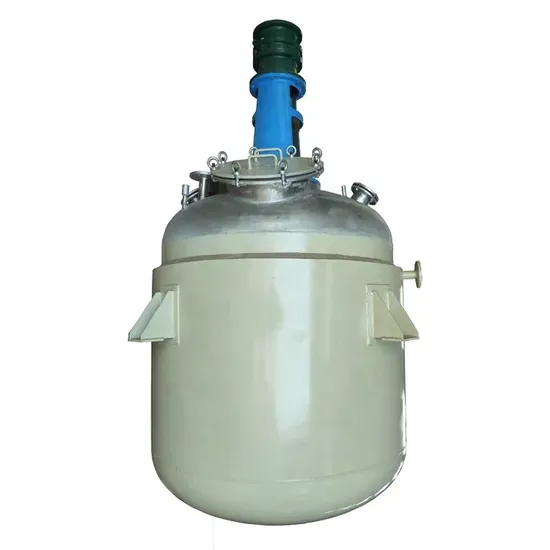

Introduction 1) Reactor is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
2) To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
3) The reactor consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
4) Corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters ect.
Product Description
In order to overcome the problem of tires of various vehicles being punctured by iron nails and other sharp objects, tire self-rehydration is the most ideal accessory. If the tires are pre-added with a proper amount of glue, when the tires are punctured, the special substances in the glue can be used Quickly and effectively block the breach and solidify into a film to fill the breach. At the same time, the tire will not leak if it is punctured in the future, there is no need to repair the tire, and it can extend the service life of the tire. The tire self-refilling is suitable for all kinds of tires, which is very convenient.How to use tire self-rehydration:
1.)Unscrew the tire valve core and drain the air inside the tire.
2) Before the glue is injected, it must be fully shaken evenly, then tear off all the film of the bottle mouth and bottle cap, put the hose on the bottle cap, the other end of the hose on the tire valve, squeeze the bottle by hand Inject it into the tire in a physical way.
3) After the glue is squeezed into the tire, remove the residue on the valve nozzle, screw on the valve core, and then use an air pump to inflate the tire to the specified air pressure, and then rotate the tire to disperse the glue.

model	nominal capaci	actual capci	heating power	jacket capaci	inner pot size	jacket size	hole center	volume
50L	50	78	2*4	96	400	600	828	10
100L	100	127	2*6	127	500	700	928	15
300L	300	327	4*6	218	800	1000	1148	20
500L	500	509	4*9	269	900	1100	1252	25
1000L	1000	1017	4*12	400	1200	1400	1588	40
2000L	2000	2154	4*15	850	1400	1600	1840	80
3000L	3000	3201	5*15	1015	1600	1750	2040	100
4000L	4000	4020	5*15	1226	1600	1750	2070	120
5000L	5000	5170	5*18	1400	1800	2000	2320	140

Design capacity 50-30000L(volume in accordance with the requirements of the design)
Reaction temperature room temperature-300ºC
Reaction pressure -0.1~0.6Mpa
Equipment materail SUS304 stainless steel,SUS321 stainless steel ,SUS316,Q235-B carbon steel
Stirring form --anchor paddle ,block ,ribbon ,turbine tybe,a dispersing disc,modular like,
Heating methods electric heating ,steam heating ,heated in water
Heat transfer medium oil,steam,hot water,electricity and heating
Heat transfer structure jacket,outer half -tube,inner coil type
about us
Q : Can you send the formula for the products we want to make ? A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account. Q : Do you have machines in stock ? A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC . Q : Can you send the detailed drawings of the machine to us before we place order ? A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
