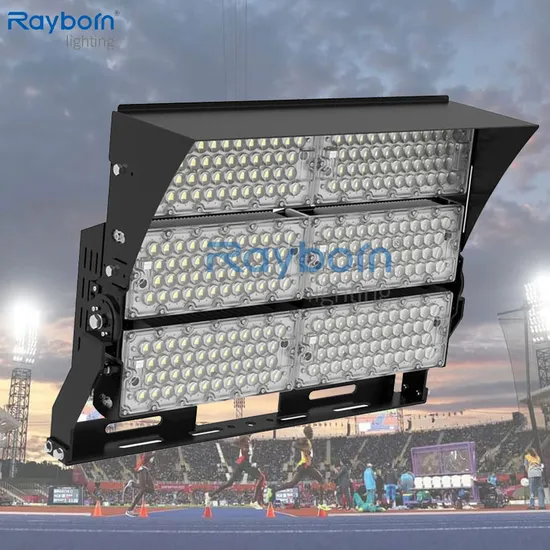

Outdoor Spot Lighting 200W 300W 400W 500W 600W 800W 1000W Staadium Tennis Basketball Tennis Court Pitch Soccer Roadway Spotlight Sports Field LED Flood Light

Product Description

Outdoor Indoor Stadium Lighting 250W-1500W LED Flood Light for Square Building Landscape Basketball Tennis Court Sports Field
Specifications of LED Flood Light

Model	RB-FLL-50WSDA	RB-FLL-100WSDA	RB-FLL-150WSDA	RB-FLL-200WSDA
Power	50W	100W	150W	200W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	3030SMD
Led(pcs)	64pcs	128pcs	192pcs	256pcs
Power Factor:	>0.98
Power Efficiency:	>95%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80/Ra>90
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,DMX,Photocell sensor
Light body material	Die-casting aluminum lamp body + pc cover +304 stainless steel screws
Beam angle	60/90/60*150Deg
CCT:	3000K/4000K/5000K/5700K/6500K/10000K
Protection level	IP66/IK09
Installation diameter	Adjustable angle bracket installation
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Model	RB-FLL-250WSDA	RB-FLL-300WSDA	RB-FLL-400WSDA	RB-FLL-500WSDA
Power	250W	300W	400W	500W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	Chip 3030SMD
Led(pcs)	320pcs	384pcs	512pcs	640pcs
Power Factor:	>0.98
Power Efficiency:	>92%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,DMX,Photocell sensor
Light body material	Die-casting aluminum lamp body + pc cover +304 stainless steel screws
Beam angle	60/90/60*150Deg
CCT:	3000K/4000K/5000K/5700K/6500K/10000K
Protection level	IP66/IK09
Installation diameter	Adjustable angle bracket installation
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs
Model	RB-FLL-500WSDC	RB-FLL-600WSDC	RB-FLL-800WSDC	RB-FLL-1000WSDC
Power	500W	600W	800W	1000W
Input Volt	100-277V/277-480V/AC 50/60Hz
Led Type:	Chip 5050SMD
Led(pcs)	184pcs	276pcs	368pcs	460pcs
Power Factor:	>0.98
Power Efficiency:	>92%
Driver	MEANWELL, INVENTRONICS,SOSEN, according to customer needs
Ra	Ra>80
Lumen(Lm/W)	140lm/W
Control method	Ordinary, 0-10V, PMW, DALI,DMX,Photocell sensor
Light body material	Die-casting aluminum lamp body + pc cover +304 stainless steel screws
Beam angle	20/40/60/90/100*140Deg
CCT:	3000K/4000K/5000K/5700K/6500K/10000K
Protection level	IP66/IK09
Installation diameter	Adjustable angle bracket installation/Adjustable module
Lightning protection level	10KV or 20KV, according to the actual needs of customers
Work temp	-35ºC~65ºC
Work humidity	10%~90%
Warranty/Life	5years/50,000hrs

Primary Competitive Advantages of Our New Design LED Flood Lights as Below :
1. Taiwan MeanWell or Inventronics drivers, 3030/5050SMD single power LED chips.
2. Finned radiators, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP66 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 20° /40°/ 60°/90°/120°/140*100° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W to 1500W can be chosen, 5 years warranty. Detailed Photos
Product Description
Outdoor Waterproof LED Flood Lighting Products Features:

Use high bright SMD 3030/5050, the luminous efficiency of the whole lamp up to 140-170lm/W. Inventronics/Sosen/Meanwell Driver. 100-277V/347-480V LED Power: 200W/250W/300W/400W/500W/600W/800W/1000W/1200W/1440W Use a high-quality Meanwell driver with surge protection of 10KV/20kV. IP66 rated for wet location. hotocell sensor and 1-10V,0-10V,PWM,DALI dimmable function for option. Modular design allows for the separation of components,adopts die casting heat dissipation technology, so that the inside of the heat sink maintains a constant temperature of 60-70C, and the heat dissipation effect is fast Maximum surge voltage (T3) Vmax 20KV. Die-cast and powder-coated aluminum housing for better anti-corrosion. Target angle marks,180degree adjustable U bracket can match your different request Offering 5 years warranty, over 50,000 hours lifetime.

Product Test Equipment:
Product Production Strict Tests of industrial SMD Waterproof IP66 Flood LED Lights :
Before shipping, all our LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Packaging & Shipping Packaging of Outdoor LED Flood Light :
Our individual package maximize protecting the lights from transfer damage in transit.
1.Label on backside of each flood LED lights and your required label is available.
2.One piece led flood Light per carton.
3.This is our regular packing of the led flood lamps,if you need,we can also custom color packing and put your logo on it.


Shipping of flood LED lights : By sea,air,express,Railwa
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
Design Simulation LED Flood Light Design Simulation:
Applications Applications of IP66 LED Floodlight Indoor and Outdoor Stadium :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and lighting project etc.
Good Service:
1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.

Company Information:
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light, LED Stadium Light,LED High Bay,LED Street Light ,etc
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.

FAQ:

Q1: What is the warranty of your led flood lights?
A: We offer three years guarantee for our LED flood lights,and we will offer you based on your requirements.
Q2: What color temperature we can choose?
A: We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your led flood lamps can be used in our country?
A: Yes, Our LED flood lamps have wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limite?
A: We don't have MOQ,even only one piece LED flood light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We ship by Sea,Train,Air shipment,and DHL,UPS,FEDEX,TNT,its usually take 4-5 days arrive.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
