Aluminum/UPVC/PVC Profile Double Head Cutting Saw

Product Description

Aluminum/UPVC/PVC Profile Double Head Cutting Saw/Aluminum Profile Cutting Machine/UPVC and Aluminum Window Door Making Machine
Product Description

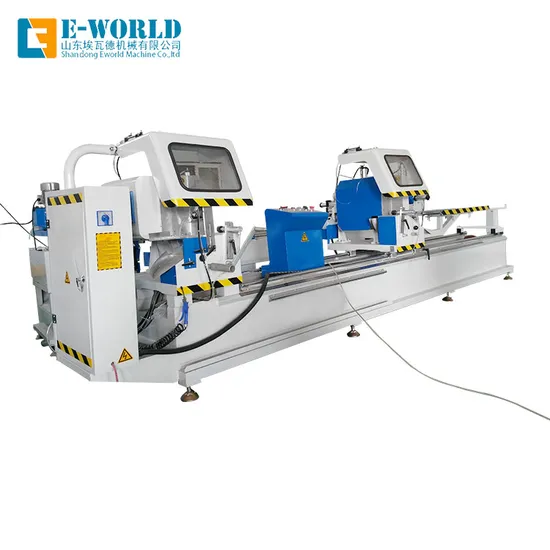

Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles
Detailed Photos
Product Parameters

MODEL	LJZ2-450*3700A
Input voltage	230/460V /3/60Hz
Input power	3Kw
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	60L/min
Motor rotation speed	2800r/min
Cutting length	400~3700mm
Cutting length tolerance	+ 0.005
Cutting angles	90, 45
Cutting width	10~120mm
Cutting height	10~200mm
Saw feeding speed	0~3m
Saw blade standard	450mmx4.4x30xZ120
Overall dimensions	4.5x1.2x1.4m

Feature 1.Imported carbide saw blade gives accurate processing and high endurance.

2.Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.

3.Saw blade rotates smoothly due to high accuracy main shaft.

4.Uniform speed feeding and smooth motion due to airdraulic damping.

5.Auto-opening guard shield ensures saft operation.

6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.

7.Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available
After Sales Service
Our Goal
Eworld Machine provides full set services and high-quality but low-price products.We are always looking for long term cooperaion, not one time deal.
Pre-sale
Eworld provides 24 hours high-quality service.When clients contact Eworld and ask for products,E-World answers at once,except our clerks sleep,which condition we answer within 10hours.Eworld understand how important it is for the customers to choose a suitable machine ,we are ready to come up with a best solution for customers.
On-sale
For all you requests,we will supply the best solution to you as soon as possible.If you have any inquiry or problems,please contact us with E-mail ,skype,whatsapp,phone,etc.
Eworld welcome customers to visit the factory,we will pick you up from airport or train station.Eworld location is convenient to welcome clients because of next to train station.
After-sale service
When customers buy the glass processing machine ,E-World promises that the machine will be delivered in 20-25 days after deposit.E-World arranges commodity's packages suitable for shipment of sea.E-World provides English instruction about manual guide and video technical support.Any problems please let we know,and we will give detailed supports and advice.E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of anycharges.When the serious breakdown and big fault happens,E-World has engineers and they can fly to there to solve it.
Contact us
If you have any questions, please feel free to contact us.
24*7, we always be here !
