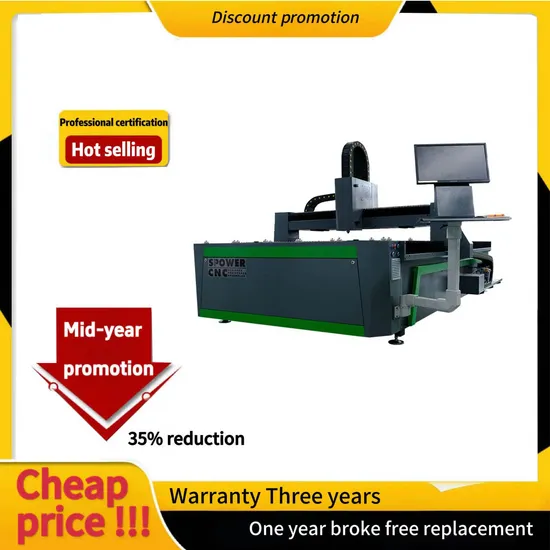

CE FDA 1500W 2000W Plates Fiber Laser Cutting Machine Forstainless Steel/Carbon Steel /Aluminum/Copper Laser Cutting Machine

Product Description

CE FDA 1500W 2000W Plates Fiber Laser Cutting Machine Forstainless Steel/Carbon Steel /Aluminum/Copper Laser Cutting Machine
Product Description
Features:
1)Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.
2) Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.
3) Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.
4) Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
5) Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.

Fiber Laser Cutting Machine
Model	SPL3015
Working area	1500*3000mm
Optional Working Area	1500*3000mm, 2000*3000mm, 2000*4000mm, 2000*6000mm,..
Configuration	Specifications
Laser Generator	GW/Raycus/IPG
Laser Cutting Head	Au3tech, Raytool,
CNC Controller	Au3tech, Cypcut
Servo driver system	Delta/Yaskawa/Pansonic
Speed Reducer	Shimpo Reducer, Japan
Rack and Pinion:	Taiwan CSK/TBI/HIWIN guide rails
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling System	Water Cooling
Continuous working time	24 Hours
Power requirements	380V/3 Phases /50Hz or 60Hz
Machine size (L*W*H)	4500x2300x1800mm

	1000w	1500W	2000W	3000W	4000W	6000W	8000W	10000W	15000W	20000W
Carbon steel	8mm	12mm	16mm	18mm	22mm	22mm	25mm	30mm	40mm	50mm
Stainless steel	4mm	5mm	6mm	8mm	10mm	14mm	18mm	20mm	30mm	35mm
Aluminum	2mm	3mm	4mm	4mm	6mm	10mm	14mm	16mm	20mm	30mm
brass	1mm	3mm	4mm	4mm	6mm	10mm	14mm	16mm	20mm	20mm

Detailed Photos
Japan Yaskawa servo motor and driver
-More accurate
It realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
-Rotating speed is more faster
High speed performance, general rated speed can reach 2000~3000 rpm;
-Daptability
High strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;
-Stable
Smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.
Fiber laser head
Including:
Manual Focusing and Automatic Focusing,More and more fiber laser cutting machine use automatic focusing laser head.
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.

The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Life Time
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head
Tube welded Bed
The constant temperature of water chiller can keep the laser power stable,work more stable and fast
Which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the frame.
High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm and weight is 2000kg.
Aluminium Gantry
High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

Company Profile

SPOWER was founded in 2002, specialize in cnc router machine, CO2 laser machine, fiber laser machine, plasma cutting machine more than 15 years. BCAMCNC always adhere advanced technology combined with satisfied user experience,make more efficient working and more stable cnc machinery for our client. Now we have expert staff more than 100 , 10 sales teams, 2 product R&D teams , 2 after-sales service teams Products sell well in Europe, America, Australia ,Africa, Asia etc, welcomed by consumers for its Strictly abide by the principles "Credit First, Quality First, Customer First and Service First."
Application
Application products
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc

Related Products
If you have any questions, please contact us
After Sales Service

After-sales service
1. For whole fiber laser cutting machine, we provide 2 years warranty and lifetime after-sales service, we will provide the consumable. parts at an agency price when you need replacement.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Our engineer could support you technology to your country if necessary.
4.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
5. English manual and CD video for machine using and maintaining will send to you with the machine.
Customer praise

Packaging & Shipping
How is the packing?
1) packaged with Standard plywood case, its compressive strength and bearing quality is better.
2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3).when importing, the plywood case is with fumigation-free, the procedure is simple.
FAQ
Q1: How do I get the best price?
A: Different type of CNC machine apply to the different price.
Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?We will recommend the most suitable model and the best price for you.
Q3: What should I do if the machine fails during warranty period?
A: Just contact us----our sales are online for 24-hours and ready to help.Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you trading company or manufacturer?
A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISOcertifications, all the machines are tested well before delivery. There is a 12 months warranty.
Q5: How long is your delivery time?
A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.
