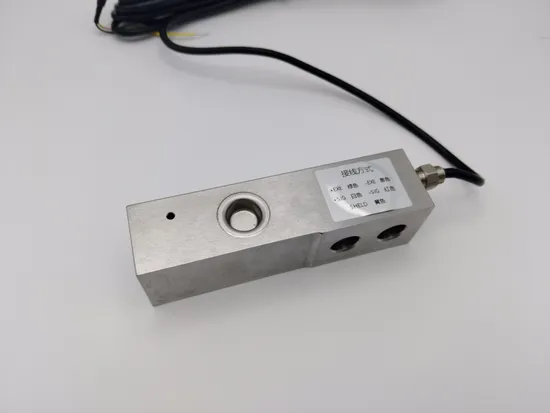

Factory Outlet Hot Sale IP68 Stainless Steel Cantilever Beam Load Cell for Industries Ingredients Weighing Control
| US$30.00-70.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZH-LJ
Out-Wire
4-Wire
Output Signal Type
Analog Type
Feature
Corrosion Resistant
Production Process
Normal Wirewound
Material
Stainless Steel
IP Rating
IP68
Certification
CE
Customized
Customized
Installation Mode
Easy to Install
Sealing Mode
Laser Sealing
Other Characteristics
Preventing of Oil, Moisture and Corrosion
Capacity
0.25t, 0.5t, 1t, 2t, 3t, 5t
Rated Output(Mv/V)
2.0000±0.002
Transport Package
Carton
Specification
43cm*40cm*23cm
Trademark
Huzhou Zhihe
Origin
Huzhou, China
HS Code
8423900010
Production Capacity
30000PCS/Year
Product Description
Actual application scenarioProduct Parameters
Feature Adopting high-precision resistance strain principle With unique technology, stable for property Laser sealing, insurance for using surrounding Stainless steel material optional, preventing of oil, moisture and corrosion Specification
| Capacity | 0.25,0.5,1,2,3,5t | Material | stainless steel |
| Rated Output(mV/V) | 2.0±0.002 | Non-linearity | ±0.02%FS |
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10ºC | Temperature effect on output | ±0.02%F.S./10ºC |
| Input resistance(Ω) | 381±4 | Output resistance(Ω) | 350±3 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-15V(DC) |
| Compensated temperature range | -10~+40ºC | Operating temperature range | -40~+65ºC |
| Safe overload | 150%FS | Breaking loading | 300%FS |
| Cable | Φ5 X 5M Or customized by request | Cable color code | Input: green+ black- Output: white+ red- |
| Rated load (t) | A | B | C | D | E | F | G | H | K | M | N | P |
| 0.25,0.5,1 | 133.4 | 76.2 | 25.4 | 16.4 | 30.7 | 30 | 57.9 | 17 | 4.8 | 12.7 | 22 | 15.9 |
| 2 | 136.7 | 76.2 | 25.4 | 16.7 | 36.8 | 36.6 | 57.9 | 23 | 9.5 | 12.7 | 22 | 15.9 |
| 3 | 139.7 | 79.2 | 25.4 | 16.7 | 39 | 36.6 | 57.9 | 23 | 9.5 | 15 | 22 | 15.9 |
| 5 | 171.5 | 95.2 | 38.1 | 16.7 | 42.9 | 43 | 73.8 | 29.4 | 11 | 19 | 34.9 | 22.2 |
