11.0mm Diamond Wire Saw for Granite Quarrying, Block Shaping, Cutting/Diamond Tool/Diamond Wire/Diamond Wire

Product Description

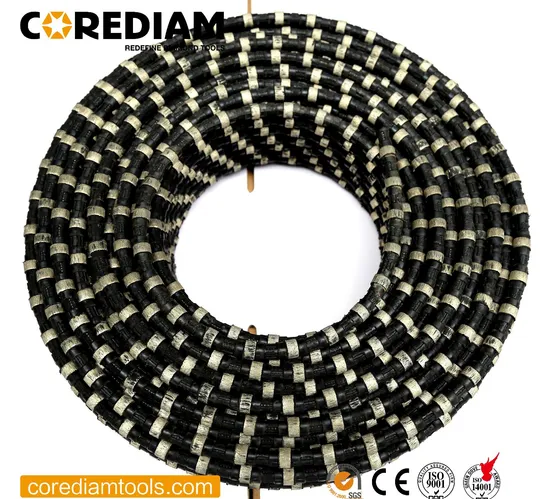

1. Diamond wire introduction
Diamond wire saw is undoubtedly a revolution in stone quarryting, which is made of sinter hot-pressed diamond beads with rubber injection
Main diameters for granite quarrying is 11.0mm, 11.5mm, and the minium diameter can be 7.2mm.
It is widely used in flexible granite quarrying, block shaping.
2. Specification

Item No.	Bead Diameter	Beads No. /Meter	Fixing
SGWS07237	7.2mm	37	Rubber/Plastic/Rubber+Spring
SGWS08537	8.5mm	37	Rubber/Plastic/Rubber+Spring
SGWS09037	9mm	37	Rubber/Plastic/Rubber+Spring
SGWS10540	10.5mm	40	Rubber/Plastic/Rubber+Spring
SGWS11040	11.0mm	40	Rubber/Plastic/Rubber+Spring
SGWS11540	11.5mm	40	Rubber/Plastic/Rubber+Spring

3. Features&cutting performance
High quarrying efficiency, safety and environmental operation ;
High capacity with regular blocks, no internal injuries, can produce large-size blocks;
Low cost quarrying.
Here are some data from stone quarry.

Cutting materials	Line speed m/s	Cutting speed sqm/h	Wire life sqm/m
Granite Class 3	20-24	12-18	12-15
Granite Class 4	18-22	5-8	6-10

4. Delivery time
1 week for samples
2-3 weeks for batch orders.
5.Package and loading
6.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
