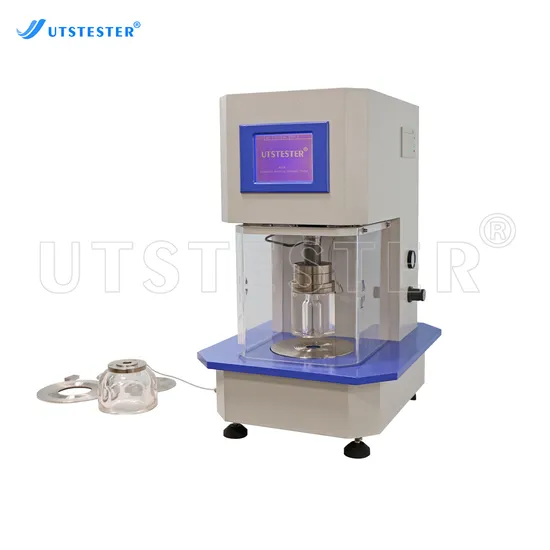

Bursting Strength Machine Price Automatic Bursting Strength Tester

Product Description

Product Description

Adopts pneumatic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

Standard

ISO 13938-2, IWTO TM29, Next TM22, M&S P27, Woolmark TM29, JIS L 1096, GB / T 7742, FZ/T 60019, ISO 2960, ASTM D 3786, etc

Test Principle
Clamp sample on the extensible diaphragm via round sample holder. Conduct air pressure underneath diaphragm to make diaphragm and sample expand. Under constant speed and adding pressure until sample burst, so as to measure the burst strength and burst expansion.
Adopts pneumatic method accorded with international standards. Microprocessor control, auto burst test, auto calibration and data processed. Test results will be display via test report Color touch screen interface with English and Chinese menu operation. Support online communication. Burst pressure up to 1500KPA(15Bar or 200psi) Burst expansion up to 70mm Test area equipped with lighting system Various test area optional and easy for switch. Product Parameters

Model	M07B
Range	0-1.20Mpa
The min. division value	0.002Mpa
Test method	Constant Speed Bursting, Pressure & Expansion
Test accuracy	≤±0.2%F·S
Rubber diaphragm thickness	≤2mm
Testing units	kgf/ cm2, Kpa, atm, lb/in2, mmHg, Freely switched
Test area	50cm2(φ79.8mm)
Safety cover	High transparent plexiglass
Pressure rate	Nonlinear sub-pressure 0.1-0.5L/min
Max expansion height	75 ± 0.02mm
Output	Printer, display output; available to connect with computer
Power supply	AC 220V 50/60HZ 800W
Dimensions(L x W x H)	560×450×580mm
Weight	60 kg
