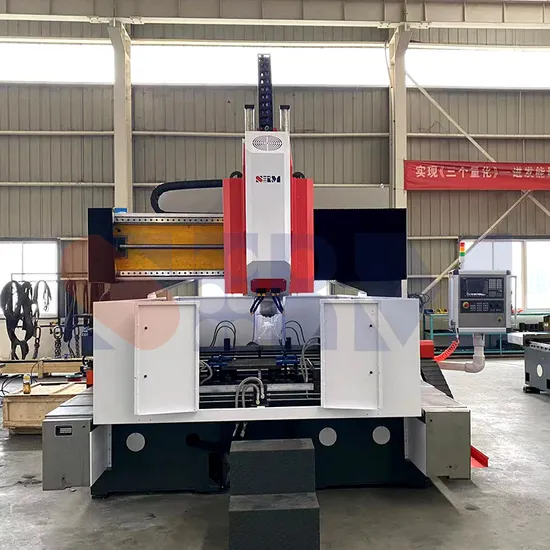

CNC Milling and Drilling Machine Phd2016 with Large Worktable Gantry Type

Product Description

CNC Milling and Drilling Machine PHD2016 With Large Worktable Gantry Type Product Description

Applicable Industry:
PHD series drilling machine mainly used for the drilling and milling process of the plates which used in construction, bridge,steel tower, steel structure industries,and also can be used for the tube plates, baffle plates, and round flange in connection boards and base plates of steel structure, tower, bridge and other industries.

Product Parameters

Model	PHD1616	PHD2016
Max. Workpiece Size(L x W)mm	Plate:1600 x 1600 Flange:Φ1600	Plate:2000 x 1600 Flange:Φ1600
Max. Thickness of workpiece (mm)	120mm
Drilling Unit Type	Sliding table, servo motor control
Drilling Head Quantity	One
Maximum Drilling Diameter(mm)	Φ40
Morse Taper of Main Spindle	BT40
Main Spindle Rotating Speed	30-3000r/min
Spindle vertical stroke(Z axis)	300mm
Servo Motor Power for X axis	2.0KW
Servo Motor Power for Y axis	1.5KW
Servo Motor Power for Z axis	2.0KW
Scrap Cleaner Motor Power	0.75KW
Clamping Type	12 Hydraulic Clamps & T Slot
Electrical Control	Siemens 808D
Positioning Precision	0.08mm
Overal Size(mm)	4500*3900*3200	4900*3900*3200
Net Weight	12000kg	14000kg

Model		PHD1010	PHD2020
Max. Work piece Size	L×W(mm)	1000x1000	2000X2000
	Max. Thickness of work piece(mm)	200	200
Work Table	T Shape Groove Width(mm)	22	28
Vertical Sliding type drilling head	Quantity	1	1
Main Spindle	Morse Taper of Main Spindle	BT50	BT50
	Maximum Drilling Diameter(mm)	Φ60	Φ60
	Rotating Speed(r/min)	30~2400	30~2400
	Motor Power(kW)	37	37
	Distance between main spindle bottom face and working table (mm)	200~700	200~700
Gantry (X axis)move	Max.stroke(mm)	1000	2000
	X axis move speed(m/min)	0~8	0~8
	X axis servo motor power(kW)	1setsx3kw	2setsx2kw
Drilling head move (Y axis)	Max. stroke(mm)	1000	2000
	Y axis move speed(m/min)	0~8	0~8
	Y axis servo motor power(kW)	3	3
Vertical slide ram move(Z axis)	Max. Stroke(mm)	500	500
	Z axis servo motor power(kW)	3	3
Positioning precision	X,Y axis (mm)	≤0.08	≤0.08
Repeat Positioning precision	X,Y(mm)	≤0.04	≤0.04
Hydraulic System	Hydraulic pump pressure (MPa) /flow(L/min)	6/25	6/25
	Hydraulic Pump Power(kW)	2.2	2.2
Scrap cleaner & Cooling	Scrap Clean type	Chain Type	Chain Type
	Scrap clean Speed(m/min)	1	1
	Scrap Clean Motor Power (kW)	0.75	0.75
Overall Size	L×W×H(mm)	4575x2460x3310	5575X3460X3310

Prouduct Details

Product features:
1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer angle.
2. Can automatically find holes to drill at X.Y axis.
3. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.
4. CNC, PLC systems, CRT display.
5. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual
previewing.
6. Automatic chip removal, coolant circulation cooling.
7. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.
8. Optimized integration design for complete machine, no foundation requirements. Sample Display
